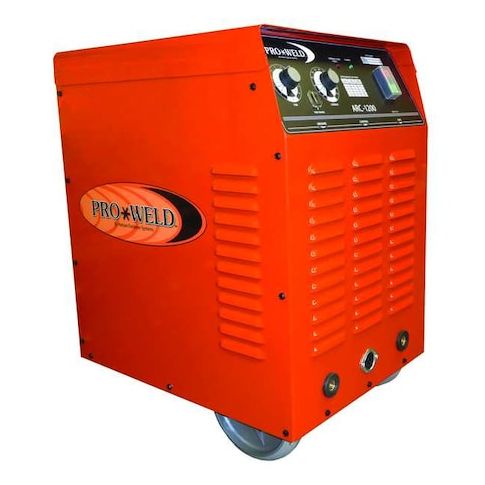

Drawn Arc Stud Welder, Stud Range 10-5/8" MPN:ARC 1200 HD
Drawn Arc Stud Welder, Stud Range 10-5/8"
The Pro Weld Drawn Arc Stud Welder is a versatile and efficient tool for a wide range of applications, including aluminum, mild steel, and stainless steel fabrication. Its high duty cycle and fast weld rate enable users to complete tasks quickly, with up to 20 welds per minute on 1/4 inch studs. Suitable for use in various industries such as construction, aerospace, and manufacturing, this stud welder is ideal for welding studs from 10-5/8 inches in diameter. Its compact design and robust construction make it a reliable addition to any workshop or production line.
Top product features:
- Drawn Arc Stud Welding Process
- Handles Material Thickness up to 5/8 in
- Welds at a Rate of 15 per minute for 5/16 in Studs
Top product applications:
- Automotive manufacturing: The drawn arc stud welder is used to attach metal components such as engine blocks, transmissions, and suspension systems to vehicle frames and chassis.
- Aerospace industry: The stud welder is used to attach metal components such as aircraft panels, engine mounts, and structural components to aircraft frames and fuselage.
- Construction and infrastructure: The drawn arc stud welder is used to attach metal components such as rebar, pipes, and fittings to concrete foundations, walls, and floors.
Stud Welder, Duty Cycle 1/2 in 8/min, 1/4 in 20/min, 3/8 in 13/min, 5/16 in 15/min, 5/8 in 4/min, For Maximum Material Thickness 5/8 in, For Minimum Material Thickness #10, For Material Type Aluminum, Mild Steel, Stainless Steel, Input Voltage 230 V AC, 460 V AC, 575 V AC, Phase Three-Phase, Rated Output Range 1300 A at 40V DC, Stud Welding Process Drawn Arc, Weld Rate 15 per minute (5/16), 20 per minute (1/4 in), Series ARC 1200 HD, Welding Processes Stud Welding
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.00
- Package Width: 24.00
- Package Height: 28.00
- Package Weight: 277.00
