Chain Coupling Sprocket, Round Keyed, 5/8 in Bore Dia., 16 # of Teeth MPN:C4016X5/8
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3388393
Chain Coupling Sprocket, Round Keyed, 5/8 in Bore Dia., 16 # of Teeth

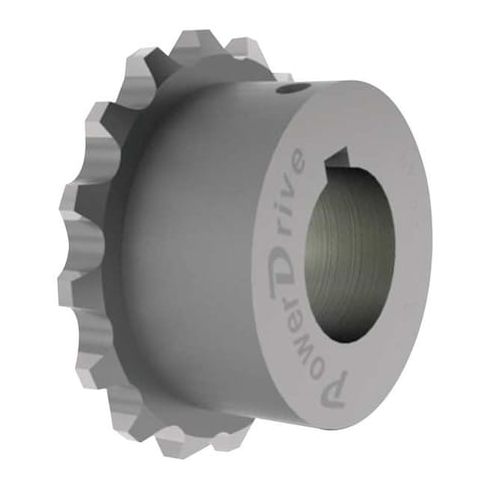

Powerdrive's Chain Coupling Sprocket is a reliable and efficient solution for connecting power transmission systems. With a 5/8 in bore diameter and 16 teeth, this sprocket can handle up to 4.14 horsepower at 100 RPM and up to 16.9 horsepower at 4,000 RPM. Its round keyed design provides smooth operation and long-lasting performance. Suitable for use in various industries, including manufacturing, automotive, and material handling, this sprocket can withstand maximum angular misalignment of 1 degree and parallel misalignment of 0.005 inches. Its compact design and ease of installation make it an ideal choice for applications requiring precise power transmission.
Top product features:
- Round keyed bore for secure keyway installation
- Maximum angular misalignment of 1 degree for flexible coupling
- Horsepower rating of 4.14 hp at 100 RPM for high-torque applications
Top product applications:
- Power transmission in industrial machinery
- Conveyor systems
- Power transmission in agricultural equipment
Chain Coupling Sprocket, Chain Number 40, Bore Diameter 5/8 in, Bore Type Round Keyed, Horsepower @ 100 RPM 4.14 hp, Outside Diameter with Chain 3 in, Hub Diameter 1 3/8 in, For Chain Pitch 1/2 in, Keyway Depth 3/32 in, Keyway Width 3/16 in, Maximum Angular Misalignment 1 Degrees , Number of Teeth 16, Parallel Misalignment 0.005 in, System of Measurement Inch, Axial Motion 0.06 in, For Cover Part Number AL40, Horsepower @ Maximum RPM 16.9 hp @ 4,000 RPM
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.70
- Package Height: 2.70
- Package Weight: 0.15
Product info last updated on February 14, 2026 4:54pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
