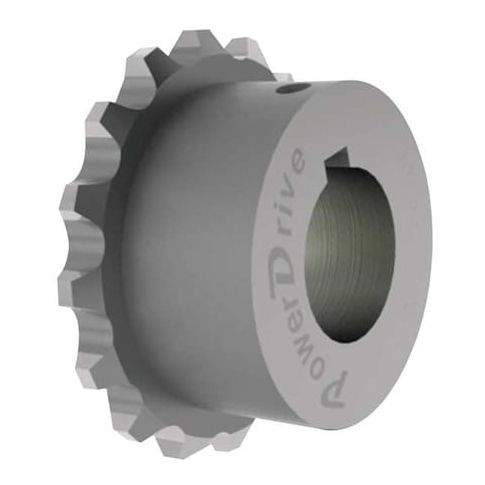

Chain Coupling Sprocket, Round Keyed, 3/4 in Bore Dia., 16 # of Teeth MPN:C4016X3/4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2657977
Chain Coupling Sprocket, Round Keyed, 3/4 in Bore Dia., 16 # of Teeth
This Chain Coupling Sprocket is a reliable and efficient solution for power transmission in various applications. With 16 teeth and a 3/4 inch bore diameter, it can handle up to 16.9 horsepower at 4,000 RPM. Its round keyed design allows for easy installation and alignment, while its maximum angular misalignment of 1 degree ensures smooth operation. Suitable for use in industrial machinery, conveyor systems, and other applications requiring precise power transmission. Its compact size and lightweight design make it an ideal choice for space-constrained environments, reducing maintenance and increasing overall system efficiency.
Top product features:
- Round keyed bore for secure attachment of shafts
- 16 teeth for precise power transmission
- Maximum angular misalignment of 1 degree for flexible coupling capability
Top product applications:
- Power Transmission in Industrial Machinery
- Conveyor Systems for Material Handling
- Pump and Compressor Drive Systems
Chain Coupling Sprocket, Chain Number 40, Bore Diameter 3/4 in, Bore Type Round Keyed, Horsepower @ 100 RPM 4.14 hp, Outside Diameter with Chain 3 in, Hub Diameter 1 3/8 in, For Chain Pitch 1/2 in, Keyway Depth 3/32 in, Keyway Width 3/16 in, Maximum Angular Misalignment 1 Degrees , Number of Teeth 16, Parallel Misalignment 0.005 in, System of Measurement Inch, Axial Motion 0.06 in, For Cover Part Number AL40, Horsepower @ Maximum RPM 16.9 hp @ 4,000 RPM
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 1.70
- Package Height: 2.90
- Package Weight: 0.95
Product info last updated on February 3, 2026 8:44am UTC
Category: Bearings, V-belts and Power Transmission Equipment
