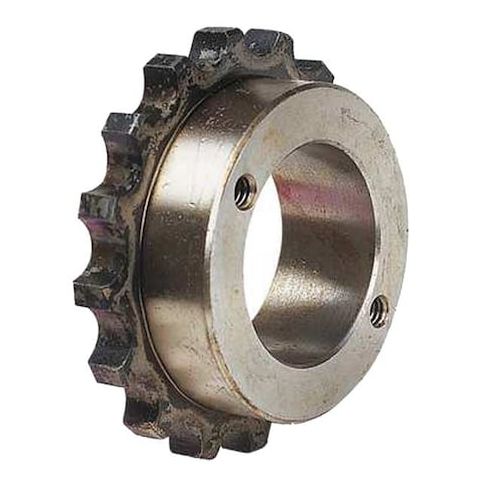

Chain Coupling Sprocket, Split Taper Bushing, 1/2 - 2-7/16 Bore Dia., 20 # of Teeth MPN:C6020XB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2173446
Chain Coupling Sprocket, Split Taper Bushing, 1/2 - 2-7/16 Bore Dia., 20 # of Teeth
This Powerdrive Chain Coupling Sprocket is designed for use in industrial applications that require precise power transmission. With a bore diameter of 2 7/16 inches and a split taper bushing, this sprocket offers a secure and reliable connection to your chain. Its 20 teeth and 1/2 to 2-7/16 inch bore diameter range make it suitable for a variety of applications, including material handling and manufacturing equipment. This sprocket can handle up to 13.48 horsepower at 100 RPM, providing efficient power transmission and minimizing wear on your equipment. Its compact design and durable construction make it an ideal choice for industrial settings.
Top product features:
- Split Taper Bushing design allows for easy installation and removal of the sprocket
- 20 teeth enable high torque transmission and efficient power transfer
- Maximum angular misalignment of 1 degree accommodates minor positional variations in the system
Top product applications:
- Power transmission in industrial machinery
- Material handling equipment
- Conveyor systems
Chain Coupling Sprocket, Chain Number 60, Bore Diameter 2 7/16 in, Bore Type Split Taper Bushing, Horsepower @ 100 RPM 13.48 hp, Outside Diameter with Chain 5.63 in, Hub Diameter 3 7/8 in, For Bushing Size B, For Chain Pitch 3/4 in, Keyway Depth Not Applicable, Keyway Width Not Applicable, Maximum Angular Misalignment 1 Degrees , Number of Teeth 20, Parallel Misalignment 0.005 in, System of Measurement Inch, Axial Motion 0.06 in, For Cover Part Number AL60
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 1.70
- Package Height: 5.30
- Package Weight: 3.20
Product info last updated on February 1, 2026 10:27am UTC
Category: Bearings, V-belts and Power Transmission Equipment
