Chain Coupling Sprocket, Round Keyed, 1 1/4 in Bore Dia., 16 # of Teeth MPN:C4016X 1 1/4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0993011

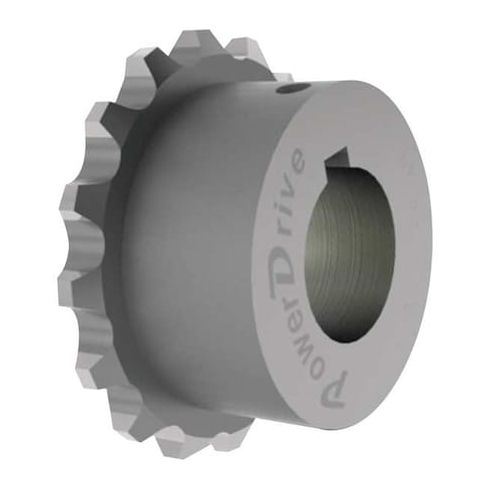

Chain Coupling Sprocket, Round Keyed, 1 1/4 in Bore Dia., 16 # of Teeth
This Chain Coupling Sprocket is designed for applications requiring a reliable and efficient connection between two shafts. With a 1 1/4 in bore diameter and 16 teeth, it can handle up to 16.9 horsepower at 4,000 RPM. The round keyed design ensures secure attachment to the shaft, while the maximum angular misalignment of 1 degree allows for some flexibility in installation. Suitable for use in industrial settings, this sprocket is ideal for applications such as conveyor systems, textile machinery, and power transmission equipment. Its compact size and lightweight design make it easy to integrate into a variety of systems.
Top product features:
- Round keyed bore design
- Maximum angular misalignment of 1 degree
- Horsepower rating of 4.14 hp at 100 RPM
Top product applications:
- Power transmission in industrial machinery
- Conveyor belt systems
- Material handling equipment
Chain Coupling Sprocket, Chain Number 40, Bore Diameter 1 1/4 in, Bore Type Round Keyed, Horsepower @ 100 RPM 4.14 hp, Outside Diameter with Chain 3 in, Hub Diameter 1 3/8 in, For Chain Pitch 1/2 in, Keyway Depth 1/8 in, Keyway Width 1/4 in, Maximum Angular Misalignment 1 Degrees , Number of Teeth 16, Parallel Misalignment 0.005 in, System of Measurement Inch, Axial Motion 0.06 in, For Cover Part Number AL40, Horsepower @ Maximum RPM 16.9 hp @ 4,000 RPM
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 1.70
- Package Height: 2.80
- Package Weight: 0.70
