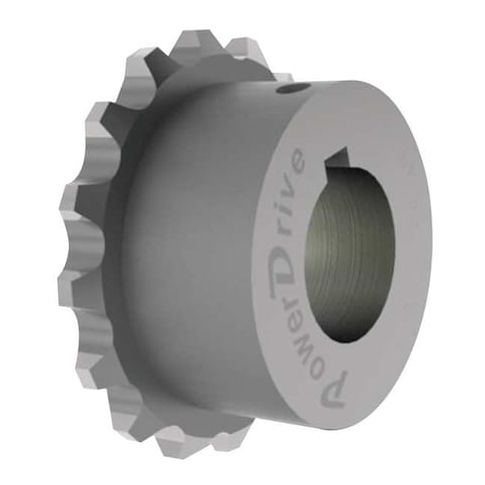

Chain Coupling Sprocket, Round Keyed, 1 1/8 in Bore Dia., 16 # of Teeth MPN:C4016X1 1/8
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0614695
Chain Coupling Sprocket, Round Keyed, 1 1/8 in Bore Dia., 16 # of Teeth
This Powerdrive Chain Coupling Sprocket is a reliable and versatile component designed for smooth power transmission in various industrial applications. With a 1 1/8 in round keyed bore and 16 teeth, it efficiently connects chain drives, allowing for a maximum angular misalignment of 1 degree and parallel misalignment of 0.005 in. Suitable for applications requiring up to 16.9 horsepower, this sprocket is ideal for use in conveyor systems, machinery, and other equipment where chain-driven power transmission is necessary. Its compact size and easy installation make it a convenient solution for a wide range of industries and settings.
Top product features:
- Round keyed bore design for secure keyway engagement
- Maximum angular misalignment of 1 degree for flexible chain coupling installation
- Keyway depth and width of 1/8 in and 1/4 in for secure keyway engagement
Top product applications:
- Power transmission in machinery and equipment
- Industrial conveyor systems
- Heavy-duty gearboxes and transmissions
Chain Coupling Sprocket, Chain Number 40, Bore Diameter 1 1/8 in, Bore Type Round Keyed, Horsepower @ 100 RPM 4.14 hp, Outside Diameter with Chain 3 in, Hub Diameter 1 3/8 in, For Chain Pitch 1/2 in, Keyway Depth 1/8 in, Keyway Width 1/4 in, Maximum Angular Misalignment 1 Degrees , Number of Teeth 16, Parallel Misalignment 0.005 in, System of Measurement Inch, Axial Motion 0.06 in, For Cover Part Number AL40, Horsepower @ Maximum RPM 16.9 hp @ 4,000 RPM
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 1.70
- Package Height: 2.90
- Package Weight: 0.78
Product info last updated on February 23, 2026 12:37pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
