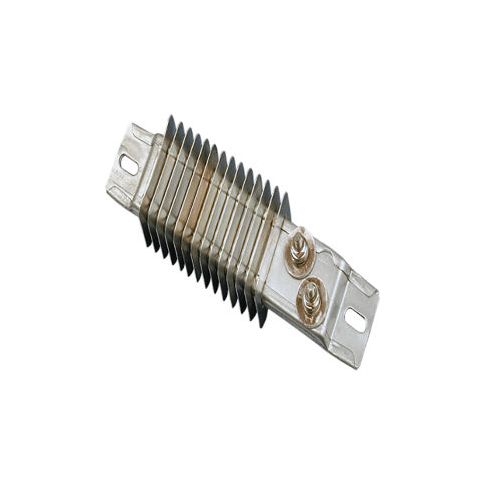

Caloritech™ SS Component Strip Heater 120V 150W 8"L SS1061

This item is NOT returnable.

Caloritech™ ss series radiant strip heaters & component heaters offset terminals at one end are a versatile and economical heating source typically used across a wide range of applications including surface heating (platens dies molds tanks piping); process air heating (drying cabinets ovens baking ovens vacuum dehydrating ovens moisture protection for motors); dropping resistors for line applications in railroads and load banks; winterizing (hoppers conveyors ducts car heating thawing); original equipment (air conditioning laboratory equipment food packaging ovens presses drying equipment). Ss series strip heaters have two offset bolt-type terminals at one end. Caloritech™ ss strip heaters are an excellent industrial heating product that can be easily controlled by using a heating control panel mechanical thermostat or cost-effective bi-metal thermostats that can be installed on the surface of the heater. Mounting holes are useful to mount the heaters securely on the wall housing with a terminal extending from the sheath for easy electrical connections. Available upon request special order - lead wires can be supplied through a special order to extend from one end of the strip heater which makes the installation more flexible as the temperature controller is easily adaptable to a specific configuration. The surface of our strip heaters can get quite hot so we would need to know the operating temperature which is application dependent to select wire with a suitable temperature rating on the insulation jacket. Aluminum steel sheath - the entire heater assembly is encased in an aluminized steel sheath and is compressed under high pressure. The sheath provides both corrosion resistance and an attractive appearance. Aluminized steel strip heaters are suitable for applications where the maximum sheath temperature does not exceed 1000°f (538°c). If higher temperatures are anticipated use stainless steel heaters. Installation - standard strip heater

Additional Information
