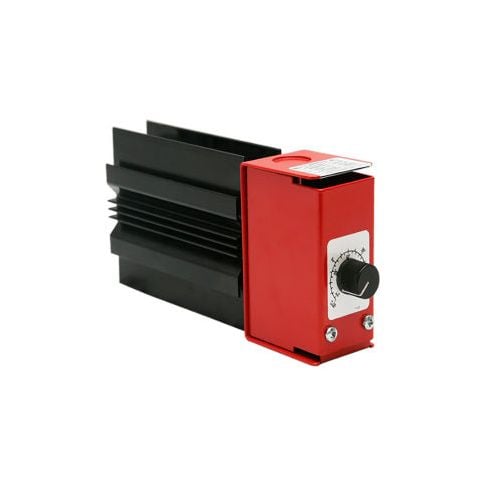

Caloritech™ PXFT Pump House Heater w/ Thermostat & Electric Control Panel 400W 120V PXFT40011

This item is NOT returnable.

The caloritech™ pxft control panel and pump house heater is designed to maintain a suitable temperature inside a control enclosure pump house or similar space. It is approved for mounting horizontally or vertically on the floor or lower wall of the enclosure. Standard units are intended for indoor applications and come equipped with a built-in thermostat. Units without thermostat are also available on special order. Selection - the wattage requirement is determined from a consideration of the surface area insulation properties of the enclosure or space and the temperature difference between the ambient and the enclosure. Installation - caloritech™ pxft heater is approved for horizontal or vertical mounting on the floor or lower wall of the enclosure. Heaters must be installed using the mounting bracket provided to ensure minimum spacing between the heater and the wall or floor. Try to maximize the spacing between the heater and temperature sensitive components. Surface temperatures of the 50 -watt and 125-watt units are about 212°f (100°c) and 338°f (170°c) respectively. The other units listed operate around 410°f (210°c). Panel & enclosure heaters types ph and pxft features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" the pxft heater uses a high surface area aluminum heat emitter to eliminate the need for a fan while providing low radiation and high convection heating to the enclosure. The thermostat rating is 25 a at 240v single pole single throw adjustable from 30°f to 120°f (0°c to 50°c) a movable bracket allows the heater to be floor or wall mounted with the terminal box located on the left or right side top or bottom wire guards are provided standard with the pxft-300 pxft-400 and pxft-600-watt heaters and are available as an option on the pxft-050 pxft-125 and pxft-200-watt units. Designed to prevent condensation and freezing in control panels eliminating costly damage

Additional Information
