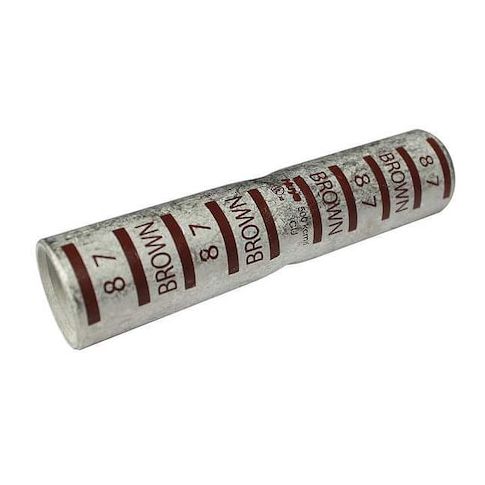

Crimp Wire Connector, 500 kcmil Max, Brown, 600 V (Formerly PowerFirst) MPN:22EZ43
Free Shipping
In Stock
The Crimp Wire Connector from GoVets Select is a reliable and efficient solution for electrical connections. With a maximum voltage of 600 V and a minimum wire size of 500 kcmil, it's ideal for heavy-duty applications in industrial and commercial settings. The long-barrel splice design allows for secure connections, while the tin-plated barrel finish provides excellent conductivity. The connector is also RoHS compliant and meets ANSI and UL 486A-486B standards. Perfect for use in electrical panels, motor control centers, and other high-voltage applications, this connector ensures safe and reliable connections.
Top product features:
- Long-Barrel Splice design allows for easy wire connections
- Tin Plated barrel finish provides corrosion resistance
- Die Code 87 ensures a secure crimp for stranded copper conductors
Top product applications:
- Heavy-Duty Industrial Wiring
- Construction Wiring
- Marine Wiring
Formerly PowerFirst.
Long-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Brown, Die Code 87, For Conductor Material Copper, For Wire Type Stranded, Material Copper, Maximum Voltage 600 V, Minimum Wire Size 500 kcmil, Maximum Wire Size 500 kcmil, Number of Crimps 8, Overall Length 4.8 in, Maximum Conductors 1, Maximum Operating Temperature 300 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards ANSI, UL 486A-486B, Barrel Inside Diameter 0.88 in, Barrel Outside Diameter 1.1 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 3.00
- Package Height: 1.10
- Package Weight: 0.55
