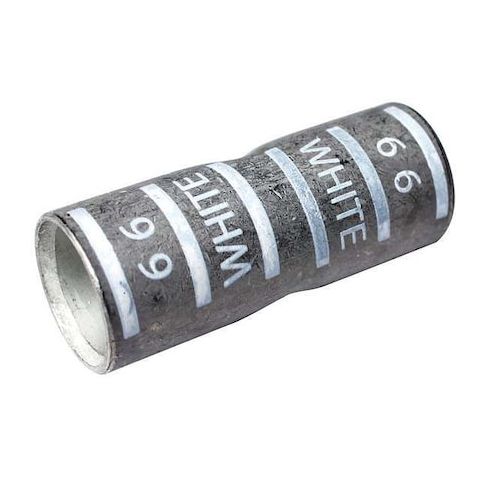

Splice Wire Connector, 300 kcmil Max, White, None Insulation, 600 V (Formerly PowerFirst) MPN:22EZ25
Free Shipping
In Stock
This Splice Wire Connector is a reliable and efficient solution for electrical connections. Suitable for use with copper stranded wires, it features a short, tin-plated barrel and a white color code. With a maximum wire size of 300 kcmil and a maximum operating temperature of 257°F, it can handle a wide range of applications. The connector is RoHS compliant and meets ANSI and UL 486A-486B standards. Ideal for use in electrical panels, switchgear, and other high-voltage applications, it provides a secure and long-lasting connection. Its compact design and seamless construction make it a great choice for industrial and commercial settings.
Top product features:
- Open Barrel Splice allows for easy connection and joining of wires.
- Tin-plated barrel finish provides corrosion resistance and durability.
- Die Code 66 is compatible with copper conductor material for secure connections.
Top product applications:
- Wire Splicing
- Electric Panel Building
- Industrial Electrical Installation
Formerly PowerFirst.
Open Barrel Splice, Barrel Finish Tin Plated, Barrel Size Short, Color Code White, Die Code 66, For Conductor Material Copper, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size Not Applicable, Maximum Wire Size 300 kcmil, Number of Crimps 2, Overall Length 2.15 in, Maximum Conductors 1, Maximum Operating Temperature 257 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards ANSI, UL 486A-486B, Barrel Inside Diameter 0.7 in, Barrel Outside Diameter 0.85 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 3
- Unit of Measure: EA
- Package Length: 3.94
- Package Width: 2.36
- Package Height: 0.91
- Package Weight: 0.40
