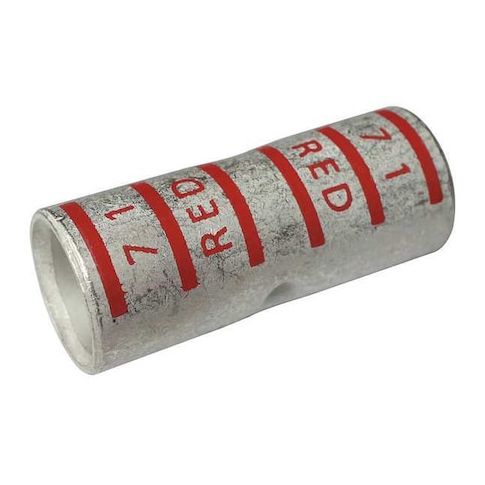

Splice Wire Connector, 350 kcmil Max, Red, None Insulation, 600 V (Formerly PowerFirst) MPN:22EZ26
Free Shipping
In Stock
Effortlessly connect stranded copper conductors with the GoVets Select Splice Wire Connector, designed for maximum reliability and ease of use. This versatile connector is suitable for a wide range of applications, including electrical panels, switchgear, and motor control centers, where high voltage and current are present. With a maximum operating temperature of 300°F and a maximum voltage of 600V, this connector is ideal for use in demanding industrial environments. Its seamless design and tin-plated finish ensure a secure and durable connection, making it an essential component for electrical contractors and engineers.
Top product features:
- Short-Barrel Splice design allows for secure connections in tight spaces.
- Tin-plated barrel finish provides corrosion resistance and durability.
- Die Code 71 ensures compatibility with stranded copper conductors.
Top product applications:
- Wire splicing for copper stranded conductors in low-voltage electrical applications
- Splicing electrical connections in residential and commercial settings
- Connecting and repairing electrical wires in industrial equipment and machinery
Formerly PowerFirst.
Short-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Short, Color Code Red, Die Code 71, For Conductor Material Copper, For Wire Type Stranded, Material Copper, Maximum Voltage 600 V, Minimum Wire Size 350 kcmil, Maximum Wire Size 350 kcmil, Number of Crimps 4, Overall Length 2.27 in, Maximum Conductors 1, Maximum Operating Temperature 300 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards ANSI, UL 486A-486B, Barrel Inside Diameter 0.75 in, Barrel Outside Diameter 0.93 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 3.94
- Package Width: 2.36
- Package Height: 0.98
- Package Weight: 0.51
