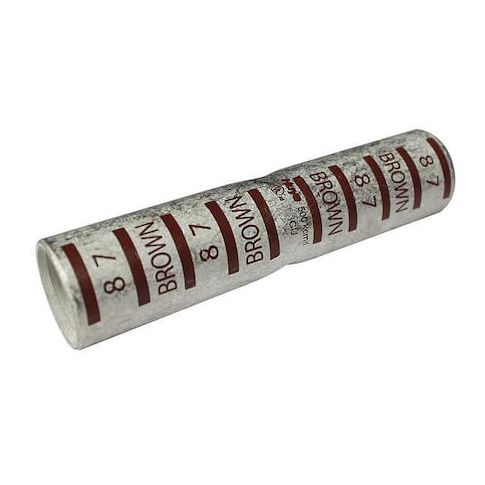

Splice Wire Connector, 500 kcmil Max, Brown, None Insulation, 600 V (Formerly PowerFirst) MPN:22EZ28
Free Shipping
In Stock
This Splice Wire Connector is designed for use in high-voltage applications, with a maximum operating temperature of 300°F and a maximum voltage rating of 600V. Suitable for copper conductors and stranded wire, it features a short-barrel design with a tin-plated finish and a seamless seam. The connector is RoHS compliant and meets ANSI and UL 486A-486B standards. Its compact size and high-performance capabilities make it ideal for use in electrical panels, switchgear, and other high-voltage equipment. It's also perfect for applications where space is limited, such as in industrial control systems and power distribution units.
Top product features:
- Short-Barrel Splice design allows for secure connections in tight spaces.
- Tin plated barrel finish provides corrosion resistance and durability.
- Die Code 87 is a standard for conductor material and wire type.
Top product applications:
- Wire splicing in electrical panels
- Electrical wiring in commercial buildings
- High-voltage electrical connections in industrial settings
Formerly PowerFirst.
Short-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Short, Color Code Brown, Die Code 87, For Conductor Material Copper, For Wire Type Stranded, Material Copper, Maximum Voltage 600 V, Minimum Wire Size 500 kcmil, Maximum Wire Size 500 kcmil, Number of Crimps 4, Overall Length 2.78 in, Maximum Conductors 1, Maximum Operating Temperature 300 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards ANSI, UL 486A-486B, Barrel Inside Diameter 0.88 in, Barrel Outside Diameter 1.1 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.92
- Package Width: 2.95
- Package Height: 1.16
- Package Weight: 0.86
