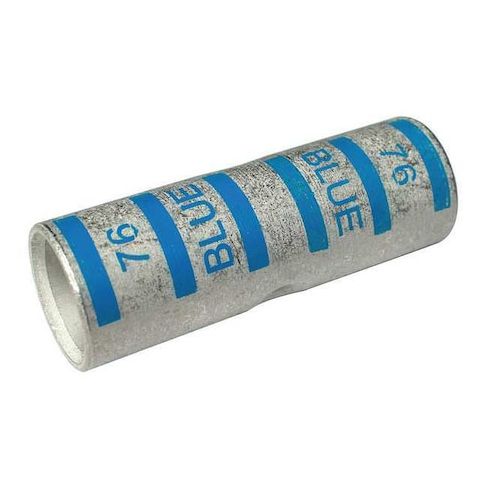

Crimp Wire Connector, 400 kcmil Max, Blue, None Insulation, 600 V (Formerly PowerFirst) MPN:22EZ42
Free Shipping
In Stock
This Crimp Wire Connector is designed for use in high-voltage applications, with a maximum voltage rating of 600 V and a maximum conductor size of 400 kcmil. The long-barrel splice allows for secure connections in tight spaces, while the tin-plated barrel finish provides excellent corrosion resistance. Suitable for use with stranded copper wire, this connector is ideal for applications in the electrical industry, such as wiring harness assembly and electrical panel construction. Its seamless design and compliance with ANSI and UL standards ensure reliable and safe connections.
Top product features:
- Long-Barrel Splice design allows for secure connections to stranded copper conductors.
- Tin-plated barrel finish provides a durable and corrosion-resistant connection.
- Die Code 76 indicates a specific wire crimping configuration suitable for copper conductors.
Top product applications:
- Wire harness assembly
- Electrical panel building
- Machine wiring
Formerly PowerFirst.
Long-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Blue, Die Code 76, For Conductor Material Copper, For Wire Type Stranded, Material Copper, Maximum Voltage 600 V, Minimum Wire Size 400 kcmil, Maximum Wire Size 400 kcmil, Number of Crimps 8, Overall Length 3.79 in, Maximum Conductors 1, Maximum Operating Temperature 300 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards ANSI, UL 486A-486B, Barrel Inside Diameter 0.79 in, Barrel Outside Diameter 0.96 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.91
- Package Width: 2.95
- Package Height: 1.02
- Package Weight: 0.89
