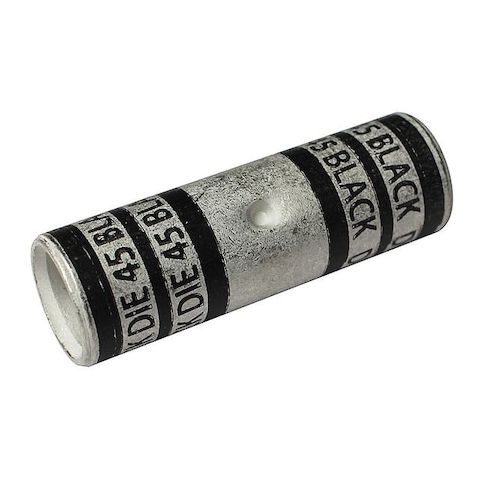

Crimp Wire Connector, 2/0 AWG Max, Black, 600 V (Formerly PowerFirst) MPN:22EZ36
Free Shipping
In Stock
Elevate your electrical connections with our Crimp Wire Connector, designed for reliable performance in demanding applications. Suitable for use with stranded copper conductors up to 2/0 AWG, this connector features a long-barrel splice and tin-plated finish for optimal conductivity. With a maximum operating temperature of 300°F and compliance with ANSI, UL 486A-486B standards, this connector is perfect for use in industrial, commercial, or residential settings. Ideal for applications such as electrical panel upgrades, circuit breaker panels, and motor control centers, our Crimp Wire Connector ensures secure and efficient connections, reducing the risk of electrical shock and equipment failure.
Top product features:
- Long-Barrel Splice allows for a secure and reliable connection between conductors.
- Tin-plated barrel finish provides corrosion resistance and durability.
- Copper material construction enables efficient heat transfer and conductivity.
Top product applications:
- Electrical Panel Wiring
- Automotive Wiring Harness
- Industrial Control Panel Wiring
Formerly PowerFirst.
Long-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Black, Die Code 45, For Conductor Material Copper, For Wire Type Stranded, Material Copper, Maximum Voltage 600 V, Minimum Wire Size 2/0 AWG, Maximum Wire Size 2/0 AWG, Number of Crimps 6, Overall Length 2.15 in, Maximum Conductors 1, Maximum Operating Temperature 300 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards ANSI, UL 486A-486B, Barrel Inside Diameter 0.44 in, Barrel Outside Diameter 0.57 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 2.80
- Package Height: 0.80
- Package Weight: 0.08
