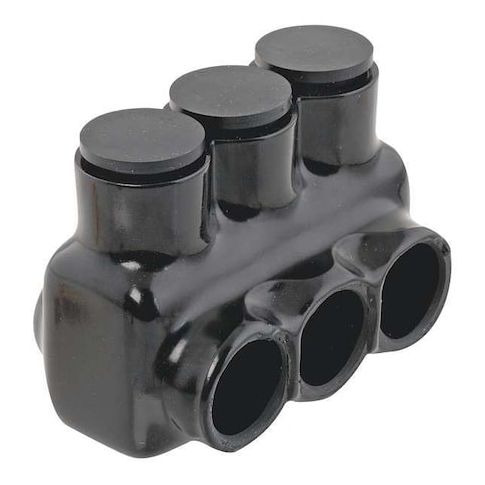

MultitapConnector, Alum, Blk, Hex, 3Port MPN:IPL250-3B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G9109791
MultitapConnector, Alum, Blk, Hex, 3Port
The Polaris Insulated Multitap Connector is a versatile and reliable solution for various applications. Its durable aluminum body and plastisol finish make it ideal for use in harsh environments. The connector is designed to handle stranded copper wire sizes from 6 AWG to 250 kcmil, making it suitable for a wide range of electrical connections. With a maximum operating temperature of 194°F and a maximum voltage of 600V, this connector is perfect for use in industrial settings, such as manufacturing facilities, construction sites, and outdoor equipment. Its compact hex head design and ease of use make it a valuable addition to any electrical project.
Top product features:
- Insulated for protection against electrical shock
- Supports multiple conductors with 3 ports
- Accepts stranded copper wire up to 250 kcmil in size
Top product applications:
- Electric Vehicle Charging Station
- Industrial Control Panel
- Heavy-Duty Trailer Wiring
Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486B
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.20
- Package Height: 2.00
- Package Weight: 0.40
Product info last updated on February 16, 2026 6:29am UTC
Category: Electrical Connectors
