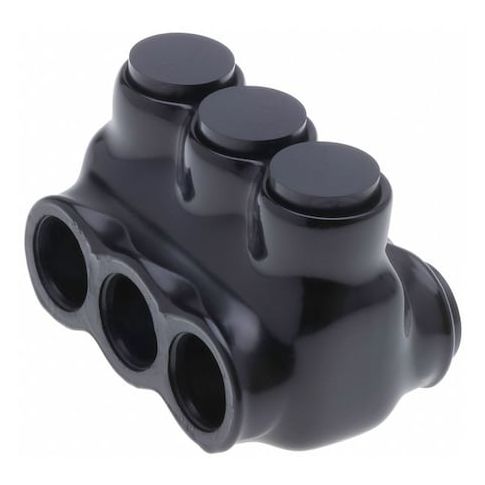

Wire Connector, 3 Port, Black, Plastisol Insulation MPN:IPLD1/0-3B
Wire Connector, 3 Port, Black, Plastisol Insulation
This 3-port wire connector is a versatile and reliable solution for connecting multiple wires in a variety of applications. Made with high-quality aluminum and plastisol insulation, it can withstand temperatures up to 194°F and handle voltages of up to 600V. Suitable for use with stranded copper wire sizes from 14 AWG to 1/0 AWG, it's ideal for electrical projects in the automotive, marine, and industrial sectors. With its compact hex head and durable construction, this connector is perfect for use in tight spaces and demanding environments, ensuring safe and reliable connections every time.
Top product features:
- Insulation Material is Plastisol, providing electrical insulation and preventing short circuits.
- Maximum Operating Temperature is 194 Degrees F, allowing the connector to withstand high temperatures.
- Supports stranded copper wire sizes from 14 AWG to 1/0 AWG, accommodating a wide range of wire gauges.
Top product applications:
- Wire connectors are used in automotive applications to connect and disconnect electrical circuits.
- Wire connectors are used in industrial applications to connect and disconnect electrical circuits in machinery and equipment.
- Wire connectors are used in electronics applications to connect and disconnect electrical circuits in electronic devices and equipment.
Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.22
Product info last updated on February 4, 2026 1:35am UTC
Category: Electrical Connectors
