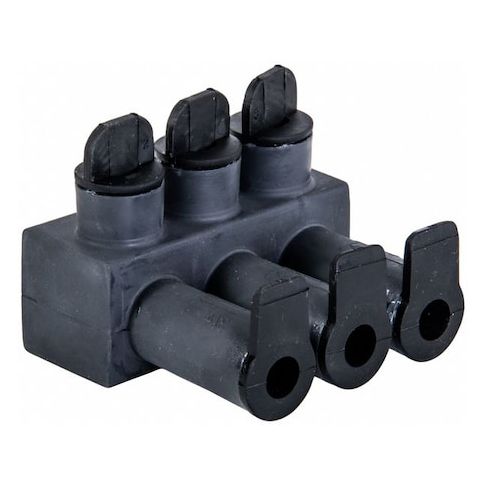

Wire Connector, 3 Port, Black, Santoprene Insulation MPN:ISPB2/0-3B
Wire Connector, 3 Port, Black, Santoprene Insulation
This 3-port wire connector from Polaris is a reliable and versatile solution for electrical connections. Suitable for use with aluminum and copper conductors, it features a durable aluminum alloy body and Santoprene insulation for excellent durability and heat resistance. With a maximum operating temperature of 194°F and a voltage rating of 600V, it's perfect for a range of applications, including industrial control panels, electrical panels, and residential electrical installations. The compact design and easy-to-use hex head make it simple to install and connect wires, ensuring a secure and efficient electrical connection.
Top product features:
- Three-port wire connection for multiple conductor attachment
- Santoprene insulation for electrical isolation and protection
- Operating temperature up to 194 degrees F for use in various applications
Top product applications:
- Automotive wiring harness
- Electrical panel assembly
- Heavy-duty industrial control systems
Wire Connector, Body Material Aluminum Alloy, Color Black, Finish Insulated, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Santoprene, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, UL 94 Flammability Rating V-1, RoHS Compliant Yes, Standards UL Listed 486DB Wire Connector ANSI C119.1, Overall Length 2.79 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.80
- Package Height: 1.80
- Package Weight: 0.33
Product info last updated on March 20, 2026 2:46pm UTC
Category: Electrical Connectors
