Wire Connector, 3 Port, Black, Plastisol Insulation MPN:IPLD4-3B
Wire Connector, 3 Port, Black, Plastisol Insulation

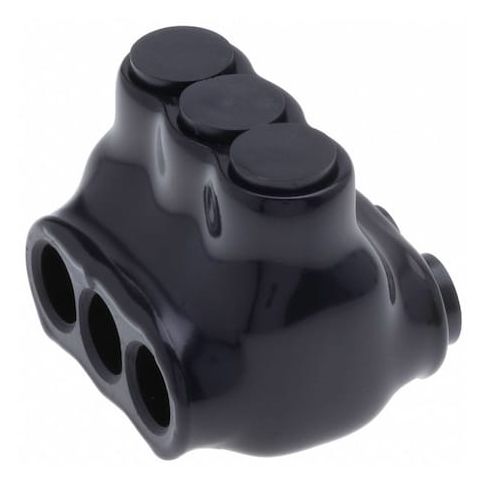

The Polaris 3-Port Wire Connector is a versatile and reliable solution for electrical connections. With its aluminum body and plastisol insulation, this connector is suitable for use with aluminum and copper conductors, and can handle wire sizes from 14 AWG to 4 AWG. It features a hex head style with a 1/8 inch size, making it easy to install and secure. The connector is UL listed and compliant with RoHS standards, ensuring high-quality performance and safety. Ideal for a range of applications, including industrial, commercial, and residential electrical systems, this connector provides a reliable and efficient way to connect multiple wires.
Top product features:
- Multitap connector allows for three connections to be made simultaneously
- Plastisol insulation provides electrical insulation and safety
- Aluminum body material provides durability and resistance to corrosion
Top product applications:
- Automotive wiring harness
- Electrical panel assembly
- Heavy equipment wiring system
Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Head Style Hex, Hex Size 1/8 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards UL 746C 750 Degrees C Glow Wire, UL Listed 486A/B Wire Connector
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 1.40
- Package Height: 1.20
- Package Weight: 0.09
Product info last updated on March 5, 2026 2:16am UTC
Category: Electrical Connectors
