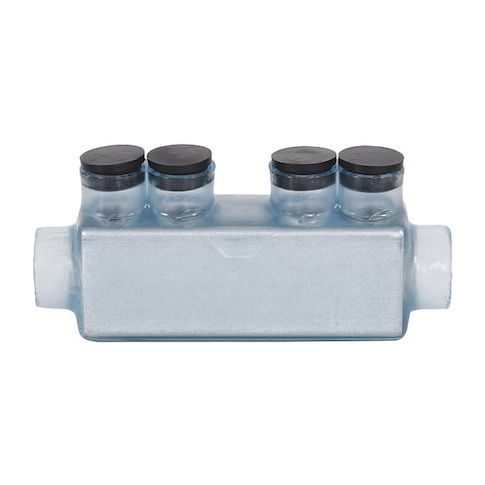

MultitapConnector, Alum, Clear, Hex, 2Port MPN:ISRH-750C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5805425
MultitapConnector, Alum, Clear, Hex, 2Port
The Polaris Multi-Tap Connector is a reliable and versatile solution for electrical connections. Designed with aluminum and copper conductors in mind, this connector features a clear plastisol finish and can handle stranded copper wire sizes from 1/0 AWG to 750 kcmil. With a maximum operating temperature of 194°F and a voltage rating of 600V, this connector is suitable for a variety of applications, including industrial and commercial settings. Its compact hex head design and insulated body make it easy to use and install, while its RoHS compliance ensures a safe and environmentally friendly solution.
Top product features:
- Insulated for safety and protection
- Accepts stranded copper wire size from 1/0 AWG to 750 kcmil
- Operates at a maximum voltage of 600 V
Top product applications:
- Wire Harness Assembly
- Automotive Electrical System Wiring
- Industrial Control Panel Wiring
Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 750 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486A
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 9.10
- Package Width: 6.25
- Package Height: 3.70
- Package Weight: 3.52
Product info last updated on January 15, 2026 8:25am UTC
Category: Electrical Connectors
