MultitapConnector, Alum, Clear, Hex, 4Port MPN:IPLD500-4CB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5805328

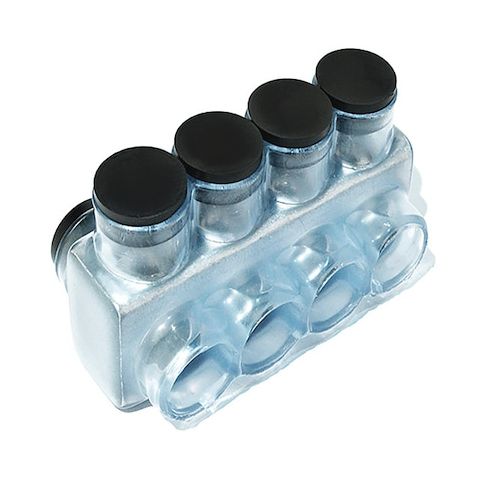

MultitapConnector, Alum, Clear, Hex, 4Port
The Polaris Multi-Tap Connector is a reliable and versatile solution for electrical connections. With four ports, it allows for multiple wires to be connected to a single point, making it ideal for use in a variety of applications, including electrical panels, control panels, and wiring harnesses. The connector's aluminum body and copper or aluminum conductors ensure high conductivity and durability, while its maximum operating temperature of 194°F and voltage rating of 600V make it suitable for use in a range of environments. Its compact size and ease of use make it a convenient choice for electricians and installers.
Top product features:
- Multitap connector supports up to 4 ports for multiple connections.
- Accepts stranded copper wire sizes from 4 AWG to 500 kcmil.
- Operating temperature range is up to 194 degrees F.
Top product applications:
- Electrical Panel Distribution
- Automotive Wiring Harness
- Marine Electrical Systems
Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 500 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 4, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486A, UL 486B
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 3.00
- Package Height: 3.00
- Package Weight: 1.15
Product info last updated on January 15, 2026 8:25am UTC
Category: Electrical Connectors
