MultitapConnector, Alum, Clear, Hex, 5Port MPN:IPLD250-5CB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5805224

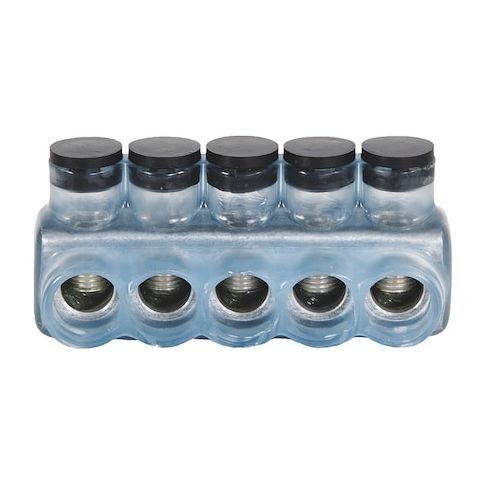

MultitapConnector, Alum, Clear, Hex, 5Port
The Polaris Multi-Tap Connector is a versatile and reliable solution for a variety of applications. With five ports, it allows for multiple connections to be made to a single conductor, streamlining installations and reducing the need for multiple connectors. Suitable for use with aluminum and copper conductors, it can handle wire sizes from 6 AWG to 250 kcmil. Its high-temperature rating and UL 486A and UL 486B certifications ensure safe and reliable performance in demanding applications. Ideal for use in commercial and industrial settings, this connector is a valuable addition to any electrical or mechanical system.
Top product features:
- Multitap connector design allows for multiple conductors to be connected to a single head.
- The connector is made of aluminum, providing a durable and corrosion-resistant material for the body.
- The connector has a maximum operating temperature of 194 Degrees F, allowing for use in a wide range of applications.
Top product applications:
- Automotive Wiring Harness
- Heavy-Duty Industrial Control Panels
- Marine Electrical Systems
Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 5, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486A, UL 486B
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 6.25
- Package Height: 3.00
- Package Weight: 0.80
Product info last updated on January 15, 2026 8:25am UTC
Category: Electrical Connectors
