MultitapConnector, Alum, Clear, Hex, 3Port MPN:IPL3/0-3CB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5805093

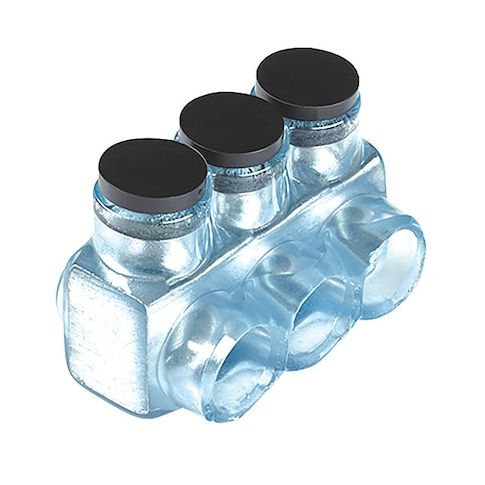

MultitapConnector, Alum, Clear, Hex, 3Port
The Polaris Multi-Tap Connector is a reliable and versatile solution for electrical connections. Its three ports allow for multiple wires to be connected to a single point, making it ideal for a wide range of applications, including electrical panels, control systems, and industrial equipment. The connector's aluminum body and copper or aluminum conductor material ensure high conductivity and durability, while its plastisol insulation provides excellent electrical and thermal protection. With a maximum operating temperature of 194°F and a voltage rating of 600V, this connector is suitable for use in demanding environments, making it a valuable tool for electricians and engineers.
Top product features:
- 3 Port capability for connecting multiple conductors
- Accepts stranded copper wire sizes from 6 AWG to 3/0 AWG
- Operating temperature range up to 194 Degrees F for reliable performance
Top product applications:
- Household wiring projects
- Automotive electrical systems
- Industrial electrical installations
Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards cULus, UL 486A, UL 486B
Additional Information
- Country of Origin: CA
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.50
- Package Height: 2.00
- Package Weight: 0.24
Product info last updated on January 15, 2026 8:25am UTC
Category: Electrical Connectors
