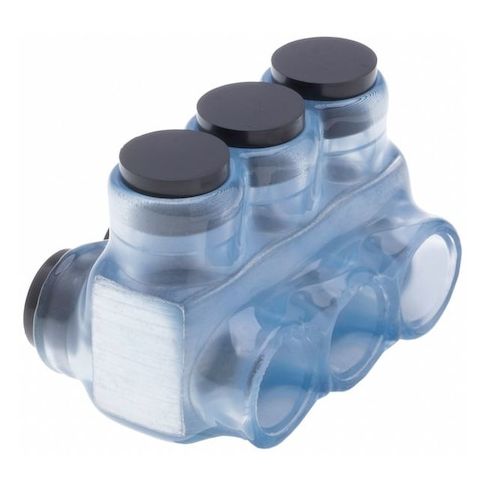

Wire Connector, 3 Port, Clear, Plastisol Insulation MPN:IPLD2-3CB
Wire Connector, 3 Port, Clear, Plastisol Insulation
The Polaris 3-Port Wire Connector is a reliable and versatile solution for electrical applications. Suitable for use with aluminum and copper conductors, this connector features a clear plastisol insulation and a hex head style. With a maximum operating temperature of 194°F and a voltage rating of 600V, it can handle a variety of tasks, from automotive to industrial use. Its compact design and ease of installation make it an ideal choice for applications such as circuit board connections, electronic device assembly, and more. Its durability and performance ensure a long-lasting and secure connection.
Top product features:
- Three-port wire connector for connecting multiple conductors
- Plastisol insulation provides electrical isolation and protection
- UL 746C 750 Degrees C Glow Wire rating indicates high-temperature resistance
Top product applications:
- Wire connectors are commonly used in automotive applications to connect multiple wires to a single circuit.
- Wire connectors are used in industrial control panels to connect multiple wires to a single control circuit.
- Wire connectors are used in residential electrical applications to connect multiple wires to a single lighting circuit.
Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Head Style Hex, Hex Size 5/32 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Standards UL 746C 750 Degrees C Glow Wire, UL Listed 486A/B Wire Connector
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.40
- Package Height: 1.20
- Package Weight: 0.10
Product info last updated on January 15, 2026 3:18am UTC
Category: Electrical Connectors
