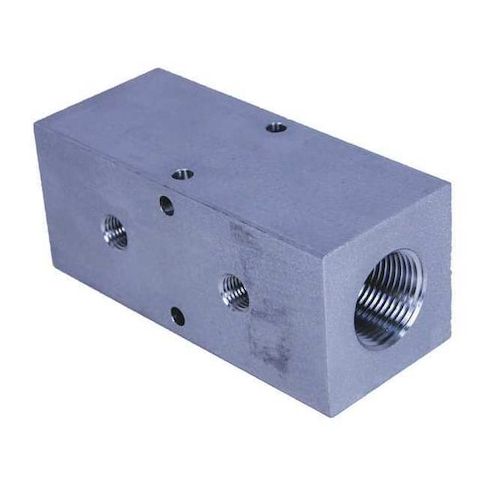

Manifold, 90 deg., 4 Outlets, 5-1/4" L MPN:M40-500-2-90
Manifold, 90 deg., 4 Outlets, 5-1/4" L
The PNEUMADYNE 90-degree manifold is a versatile and reliable fitting for fluid and gas applications. Its 4 outlets and 2 inlets allow for efficient routing and distribution of fluids, while its aluminum construction provides durability and resistance to corrosion. With a maximum operating pressure of 3,000 psi and a temperature range of -10 to 200°F, this manifold is suitable for a variety of industries, including manufacturing, aerospace, and oil and gas. Its compact size and right-angle flow direction make it ideal for use in tight spaces and high-pressure systems, reducing pipe stress and increasing system efficiency.
Top product features:
- 90-degree flow direction allows for right-angle connections
- Aluminum construction with a 6061 grade provides durability and resistance to corrosion
- Maximum operating pressure of 3,000 psi enables high-pressure applications
Top product applications:
- Industrial Process Control Systems
- Automotive Fuel Injection Systems
- Laboratory Gas Distribution Systems
Pipe Manifold Fitting, Flow Direction Right-Angle, For Fluid Type Fluid, Gas, Inlet Connection Gender Female, Inlet Connection Size 1 in, Inlet Connection Type NPT, Manifold Material Aluminum, Manifold Material Finish Not Applicable, Manifold Material Grade 6061, Maximum Operating Pressure 3,000 psi, Maximum Operating Temperature 200 Degrees F, Minimum Operating Temperature -10 Degrees F, Number of Inlets 2, Number of Mounting Holes 2, Number of Outlets 2, Outlet Connection Gender Female
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 2.30
- Package Height: 2.20
- Package Weight: 1.90
Product info last updated on February 13, 2026 10:43am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
