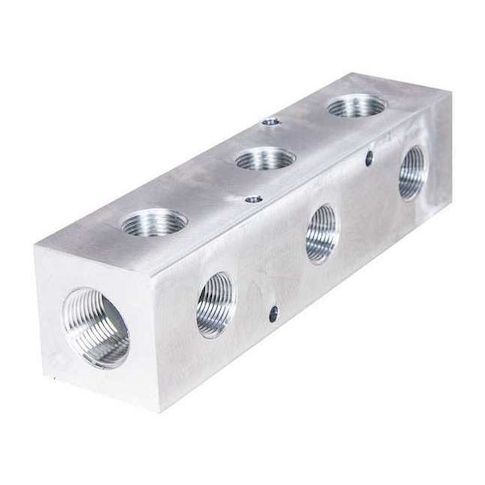

Manifold, 90 deg., 6 Outlets, 7-1/2" L MPN:M40-500-3-90
Manifold, 90 deg., 6 Outlets, 7-1/2" L
The PNEUMADYNE 90-degree manifold features 6 outlets and a compact 7-1/2in length, making it ideal for applications where space is limited. Suitable for fluid and gas systems, this manifold is constructed from durable aluminum alloy 6061, ensuring reliable performance in demanding environments. With a maximum operating pressure of 3,000 psi and temperature range of -10 to 200 degrees F, it's perfect for use in industrial, commercial, and laboratory settings. Its right-angle design facilitates easy installation and maintenance, while the 2 mounting holes provide secure attachment options. Ideal for use in air, water, and hydraulic systems.
Top product features:
- 90-degree flow direction allows for efficient right-angle connections
- Three female NPT outlets enable multiple fluid connections
- 6061 aluminum construction provides durability and resistance to corrosion
Top product applications:
- Industrial Air Compressor System
- Medical Gas Distribution System
- Automotive Brake Fluid Cooling System
Pipe Manifold Fitting, Flow Direction Right-Angle, For Fluid Type Fluid, Gas, Inlet Connection Gender Female, Inlet Connection Size 1 in, Inlet Connection Type NPT, Manifold Material Aluminum, Manifold Material Finish Not Applicable, Manifold Material Grade 6061, Maximum Operating Pressure 3,000 psi, Maximum Operating Temperature 200 Degrees F, Minimum Operating Temperature -10 Degrees F, Number of Inlets 2, Number of Mounting Holes 2, Number of Outlets 3, Outlet Connection Gender Female
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 3.00
- Package Height: 2.70
- Package Weight: 2.72
