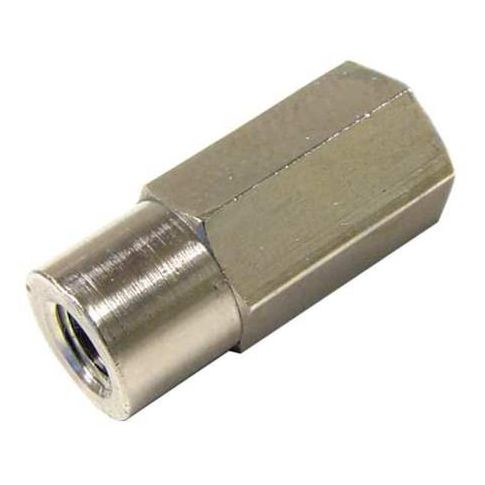

10-32 (F) UNF Brass Check Valve MPN:C050401
The 10-32 (F) UNF Brass Check Valve from PNEUMADYNE is a reliable and versatile solution for general-purpose applications. Its inline design allows for easy installation and minimizes pressure drop, making it ideal for use in a variety of industries, including HVAC, plumbing, and industrial processes. The valve's brass and electroless nickel construction ensures durability and resistance to corrosion, while its Buna-N seal provides a tight shut-off and long service life. With a maximum temperature rating of 160°F, this check valve is suitable for use in a range of applications, from water treatment to chemical processing.
Top product features:
- Flow design is single
- Cracking pressure is 0.1 psi
- Seat material is Brass, Electroless Nickel
Top product applications:
- General Purpose
- General Purpose
- General Purpose
The PNEUMADYNE C050401 is an inline check valve designed for general-purpose flow control. It is configured for one-direction flow and reverse-flow control in compatible fluid or gas systems. This valve features a brass body with electroless nickel, a single-flow design, and female NPT connections on both ends.
Key Features:
- Valve type: Check valve with inline body design
- Application: General purpose flow control
- Body material: Brass with electroless nickel
- Connection type: FNPT x FNPT
- Connection size: 3/16 in on both sides
- Nominal valve size / pipe or tube size: 5/16 in
- Cracking pressure: 0.1 psi
- Flow capacity: Cv 0.09
- Flow rate: 9.5 scfm
- Seal material: Buna-N
- Seat material: Brass with electroless nickel
- Maximum operating pressure: 125 psi
- Operating temperature range: -20 degrees F to 160 degrees F
- Hex size: 5/16 in
- Overall length: 0.83 in
- Overall height: 13/16 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.40
- Package Width: 0.80
- Package Height: 0.40
- Package Weight: 0.00
