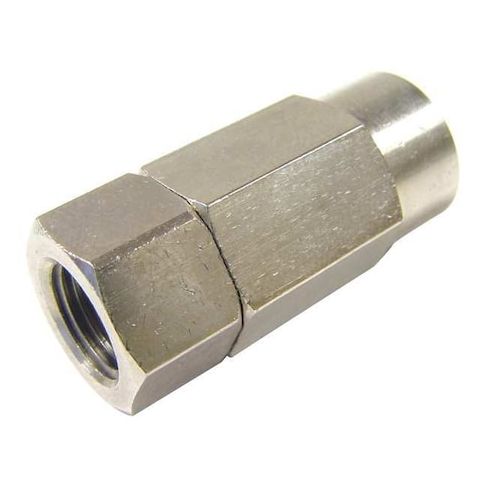

Check Valve, Inline, 1/8 in FNPT x FNPT, Brass/Electroless Nickel, 0.5 psi Cracking Pressure MPN:C050501
The 1/8in FNPT Brass Check Valve from Pneumadyne is a reliable and efficient solution for general-purpose applications. This inline check valve features a single-flow design with a cracking pressure of 0.5 psi, ensuring smooth operation and minimizing backflow. The valve's brass and electroless nickel construction provides durability and resistance to corrosion, while the Buna-N seal ensures a tight seal. Suitable for use in a variety of applications, including pneumatic, hydraulic, and steam systems, this valve is an ideal choice for those seeking a high-quality, low-maintenance solution. Its compact design also makes it easy to integrate into existing systems.
Top product features:
- Flow Design Single
- Cracking Pressure 0.5 psi
- Electroless Nickel Coating
Top product applications:
- General Purpose
- General Purpose
- General Purpose
PNEUMADYNE C050501 is an inline check valve for one-way flow control in piping and air or fluid systems. It permits flow in one direction and closes to reduce reverse flow. This valve has a brass body with an electroless nickel finish, a single-flow design, and 1/8 in FNPT connections on both ends.
Key Features:
- Inline check valve with single-flow design for one-way flow control
- 1/8 in FNPT x FNPT connections with female threads on both sides
- Brass body with electroless nickel finish
- Buna-N seal with brass and electroless nickel seat material
- 0.5 psi cracking pressure
- Flow capacity: 31.5 scfm
- Cv: 0.41
- Maximum operating pressure: 125 psi
- Operating temperature range: -20 F to 160 F
- Overall length: 1.31 in
- Overall height: 1-21/64 in
- Width: 9/16 in
- Hex size: 9/16 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.40
- Package Width: 0.50
- Package Height: 0.50
- Package Weight: 0.01
