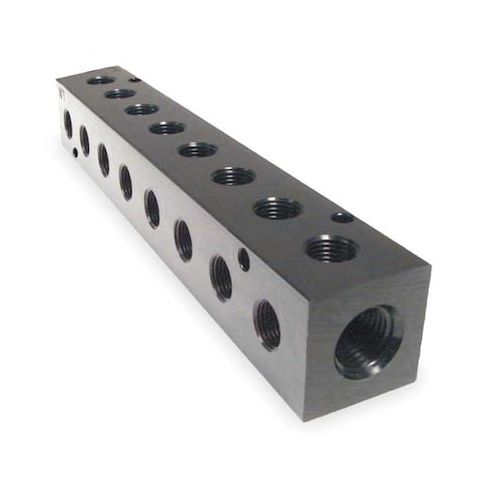

Manifold, 90, Metal, NPT, 3/8 In. MPN:M20-250-8-90
Manifold, 90, Metal, NPT, 3/8 In.
This versatile pipe manifold fitting is designed for a wide range of fluid and gas applications, providing a reliable and efficient way to manage multiple lines. With its 2 inlet connections and 8 outlet connections, this fitting is ideal for use in high-pressure systems, such as industrial machinery, HVAC, and oil and gas operations. The anodized aluminum construction ensures durability and resistance to corrosion, while the right-angle design saves space and reduces installation complexity. Its compact size and lightweight design make it easy to integrate into new or existing systems, offering a cost-effective solution for demanding applications.
Top product features:
- Right-angle flow direction allows for efficient routing of fluid and gas
- Two female NPT inlet connections enable secure and leak-free connections to fluid and gas sources
- Eight female NPT outlet connections provide multiple points for fluid and gas distribution
Top product applications:
- Air Compressor System
- Industrial Fluid Transfer System
- Medical Gas Distribution System
Pipe Manifold Fitting, Flow Direction Right-Angle, For Fluid Type Fluid, Gas, Inlet Connection Gender Female, Inlet Connection Size 3/8 in, Inlet Connection Type NPT, Manifold Material Aluminum, Manifold Material Finish Black Anodized, Manifold Material Grade 6061, Maximum Operating Pressure 3,000 psi, Maximum Operating Temperature 200 Degrees F, Minimum Operating Temperature -10 Degrees F, Number of Inlets 2, Number of Mounting Holes 2, Number of Outlets 8, Outlet Connection Gender Female
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 1.40
- Package Height: 1.30
- Package Weight: 0.83
Product info last updated on January 29, 2026 11:22pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
