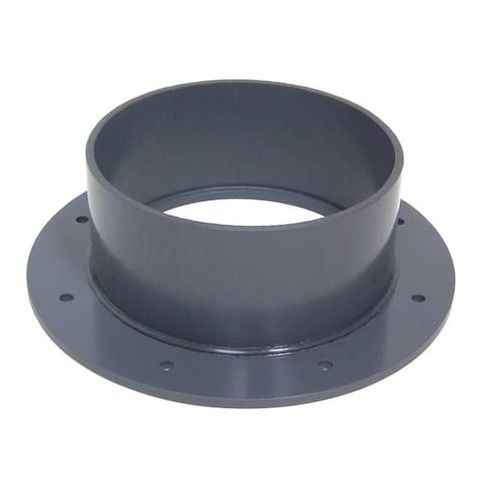

Flange Adapter, 14 in Duct Dia, Type I PVC, 18" L, 3-3/4" H MPN:PVCF14
Flange Adapter, 14 in Duct Dia, Type I PVC, 18" L, 3-3/4" H
This PVC flange adapter is designed for use in ductwork applications, providing a secure and leak-free connection between two sections of duct. Its 14-inch diameter and 18-inch length make it suitable for a variety of ventilation and air handling systems. The adapter's angle design allows for easy installation and reduces the risk of kinking or damage to the duct. Its high-pressure rating of 10 inches of water column ensures reliable performance in demanding applications. Suitable for use in commercial and industrial settings, this adapter is a reliable solution for maintaining a safe and healthy indoor air quality.
Top product features:
- Type I PVC construction provides resistance to corrosion and chemicals.
- The flange adapter has 16 holes for easy connection to other ductwork components.
- The adapter has an inner diameter of 14 in and an outer diameter of 18 in, allowing for a secure and leak-free connection to 14 in ducts.
Top product applications:
- HVAC Ductwork Connection
- Commercial Ventilation System Installation
- Plumbing Fitting for Drainage Systems
Flange Adapter, For Nominal Duct Diameter 14 in, Inlet Diameter 14 in, Material PVC, Product Type Angle Flange Adapter, Material Thickness 0.3 in, Overall Length 18 in, Maximum Pressure Rating 10 in wc, Weight 3 lb, Flange Inner Diameter 13 5/8 in, Flange Outer Diameter 18 in, Inside Diameter 14 in, Number of Holes on Flange 16, Overall Width 18 in, Bolt Circle Diameter 16 1/2 in, Minimum Pressure Rating Not Applicable, Shape Straight, Outlet Diameter 18 in, Overall Diameter 18 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.00
- Package Width: 18.00
- Package Height: 3.50
- Package Weight: 2.85
Product info last updated on February 5, 2026 6:55pm UTC
Category: Ventilation
