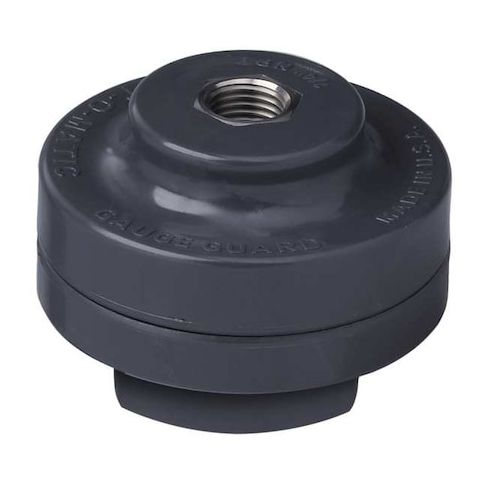

Gauge Gd, PVC, PTFE Dia, 1/2 I Gauge Port MPN:GGTSX1-PV
Gauge Gd, PVC, PTFE Dia, 1/2 I Gauge Port
The Plast-O-Matic Gauge Gd is a versatile and reliable gauge guard designed for highly corrosive fluid lines and ultra-pure applications. With a maximum pressure of 250 psi and an accuracy of +/-3%, this gauge guard ensures precise measurements in a wide range of industries. Its durable construction features a stainless steel connector, PTFE diaphragm, and Buna-N O-ring, making it resistant to corrosion and wear. Ideal for mounting inline, this gauge guard is suitable for use in applications such as pharmaceutical, biotechnology, and chemical processing, where accuracy and purity are paramount. Its compact design and fast shipping make it an excellent choice for any facility.
Top product features:
- The product has a maximum pressure rating of 250 psi, making it suitable for high-pressure applications.
- The product features a diaphragm made of PTFE, which provides a high level of chemical resistance and is compatible with highly corrosive fluids.
- The product has a gauge port size of 1/4 in NPT, allowing for precise measurement and monitoring of fluid levels.
Top product applications:
- Highly Corrosive Fluid Lines
- Ultra-Pure
- Inline Mounting
Gauge Guard, Connection Size 1/2 in, Connection Type FNPT, Diaphragm Material PTFE, Maximum Pressure 250 psi, O-Ring Material Buna-N, Body Material PVC, Connector Material Stainless Steel, Ambient Operating Temperature Range 0 Degrees to 140 Degrees F, Series GGS, Compatible Brand and Series Universal, Gauge Port Size 1/4 in NPT, Accuracy +/-3 Percent, Application Highly Corrosive Fluid Lines, Ultra-Pure, Mounting Inline, Overall Height 5.438 in, Overall Length 2.625 in, Overall Width 2.625 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 3.40
- Package Height: 2.90
- Package Weight: 0.68
Product info last updated on February 23, 2026 11:34pm UTC
Category: Pressure and Vacuum Measuring
