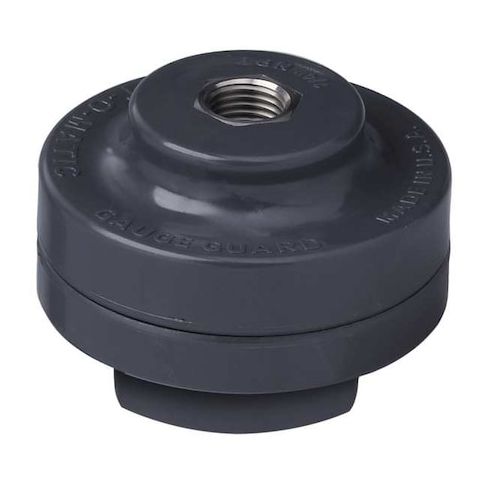

Gauge Gd, Poly, PTFE Dia, 1/2 InGauge Port MPN:GGTSX1-PP
Gauge Gd, Poly, PTFE Dia, 1/2 InGauge Port
Protect your high-purity fluid lines from contamination with the Plast-O-Matic Gauge Guard. This gauge features a PTFE diaphragm and stainless steel connector, making it ideal for use in ultra-pure applications. The Gauge Guard's polypropylene body and Buna-N O-rings ensure chemical resistance and durability. With a maximum pressure of 250 psi and an operating temperature range of 0-185°F, this gauge is perfect for use in highly corrosive environments. Its inline mounting and high accuracy of +/-3% make it a reliable choice for applications such as laboratory equipment, semiconductor manufacturing, and pharmaceutical processing.
Top product features:
- PTFE diaphragm material for resistance to highly corrosive fluids
- Buna-N O-ring material for reliable seal under pressure
- Stainless steel connector material for durability in harsh environments
Top product applications:
- Highly Corrosive Fluid Lines
- Ultra-Pure
- Inline Mounting
Gauge Guard, Connection Size 1/2 in, Connection Type FNPT, Diaphragm Material PTFE, Maximum Pressure 250 psi, O-Ring Material Buna-N, Body Material Polypropylene, Connector Material Stainless Steel, Ambient Operating Temperature Range 0 Degrees to 185 Degrees F, Series GGS, Compatible Brand and Series Universal, Gauge Port Size 1/4 in NPT, Accuracy +/-3 Percent, Application Highly Corrosive Fluid Lines, Ultra-Pure, Mounting Inline, Overall Height 5.438 in, Overall Length 2.625 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 3.40
- Package Height: 3.10
- Package Weight: 0.60
Product info last updated on February 5, 2026 5:43am UTC
Category: Pressure and Vacuum Measuring
