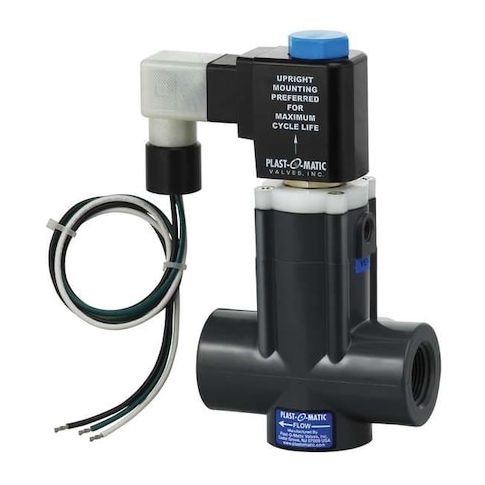

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, Inline Single, PVC MPN:EASMT5V16W24-120/60-PV

• The PLAST-O-MATIC EASMT5V16W24-120/60-PV is a 2-way, 2-position solenoid valve with inline configuration

• normally closed
• direct-acting, spring-return actuator. Valve body: PVC
• Seal material: Viton
• media compatibility claims limited to material specs. This solenoid valve supports a maximum flow rate of 6.4 gpm with a flow coefficient (Cv) of 3.2. It is rated for ambient temperatures up to 122°F and fluid temperatures up to 140°F. The valve includes the solenoid coil and sealing components necessary for installation.

  Key Features:

  • - Valve Type: Inline Single, 2-Way/2-Position
  • - Actuator: Direct Acting, Spring Return
  • - Valve Starting Configuration: Normally Closed
  • - Body Material: PVC
  • Seal Material: Viton
  • - Maximum flow rate: 6.4 gpm
  • Cv: 3.2
  • - Fluid Temperature Maximum: 140°F
  • Ambient Temperature Maximum: 122°F
  • - Electrical: 120V AC, 24 W coil wattage, 60 Hz frequency, wire leads connection
  • - Coil Enclosure: Watertight without junction box
  • Coil Insulation Class: H
  • - Environmental Rating: Indoor and Outdoor
  • NEMA Enclosure Rating: 4
  • IP Rating: IP65
  • - Connection Types: 3/4 in NPT inlet and outlet
  • - Mounting Orientation: Horizontal or Vertical
  • - Overall Dimensions: Length 4 in, Height 7-5/16 in, Width 1-1/2 in
  • - Includes: Solenoid coil and seal components
  • - Material: PVC body
  • Seals: Viton
  • media compatibility not specified
  • - Operating Pressure Differential Minimum: 0 psi
  • - Standards: CE certified
