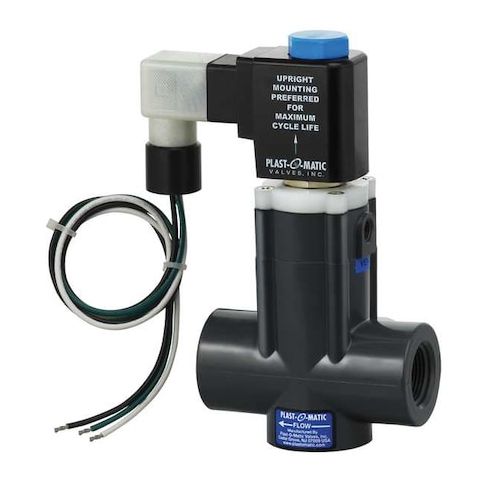

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120VAC, Inline Single, PVC MPN:EASYMT4V12W24-120/60-PV

• The PLAST-O-MATIC EASYMT4V12W24-120/60-PV is a 2-way, 2-position solenoid valve intended for inline installation with a normally closed, direct acting operation. It features a spring return actuator and is constructed with a PVC body and Viton seals. Chemical compatibility is determined by the PVC body and Viton seals

• refer to the material compatibility chart for acids, caustics, chlorine solutions, solvents, and ultrapure fluids. It supports a maximum flow rate of 3.4 gallons per minute with a coefficient of volume (Cv) of 1.2 and an orifice diameter of 3/8 inch. The valve can be mounted horizontally or vertically in varied installation setups.

  Key Features:

  • - Valve Design: 2-Way/2-Position with Normally Closed starting configuration
  • - Body Material: PVC with Viton seal material
  • - Flow Rate: Maximum 3.4 gallons per minute, Cv of 1.2
  • - Operating Temperature: Fluid up to 140°F, ambient up to 122°F
  • - Electrical: 120 VAC, 60 Hz coil included with 24 W power consumption and Class H insulation
  • - Connections: 1/2 inch NPT inlet and outlet
  • - Construction: Spring return actuator, direct acting operation type
  • - Enclosure: NEMA 4, IP65 rated
  • rated for indoor and outdoor installation
  • - Dimensions: 6-17/32 in height, 3-5/16 in length, 1-1/2 in width
