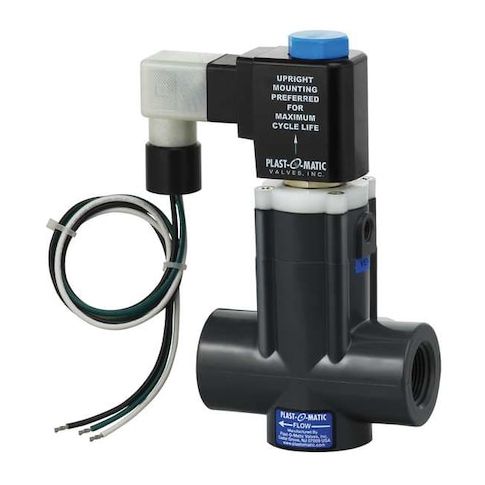

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120VAC, Inline Single, Viton MPN:EASMT4V12W24-120/60-PP

• The PLAST-O-MATIC EASMT4V12W24-120/60-PP is a 2-way, 2-position solenoid valve with a normally closed, direct acting design. Fluid compatibility limited to substances compatible with polypropylene body and Viton seals

• operating temperature up to 180°F. The valve is compatible with fluid temperatures up to 180°F and operates at a maximum ambient temperature of 122°F. It is intended for indoor and outdoor use with an IP65 and NEMA 4 enclosure rating, allowing for horizontal or vertical mounting orientations. The valve includes a Viton seal and is supplied with the coil and sealing components needed for installation.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Normally Closed, Direct Acting
  • - Body Material: Polypropylene
  • - Seal Material: Viton
  • - Orifice Diameter: 3/8 in
  • - Nominal Pipe Size: 1/2 in NPT inlet and outlet connections
  • - Maximum Flow Rate: 3.4 gpm
  • - Operating Temperatures: Fluid up to 180°F
  • Ambient up to 122°F
  • - Electrical: 120 VAC, 60 Hz, 24 W coil with wire lead connections
  • - Enclosure: Without junction box, watertight coil enclosure
  • IP65 and NEMA 4 rated
  • - Mounting Orientation: Horizontal or Vertical
  • - Includes coil and seals for installation
  • - Environmental Rating: Indoor and Outdoor use
  • - Coefficient of Volume (Cv): 2
