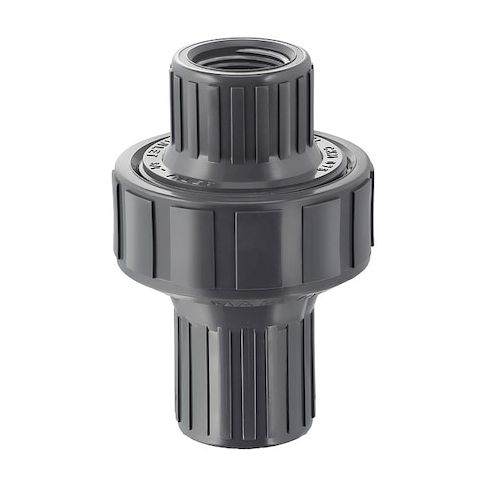

3/4" FNPT PVC Disc Check Valve MPN:CKM075V-PV
The Plast-O-Matic 3/4in FNPT PVC Disc Check Valve is a reliable and efficient solution for various applications, including water treatment, irrigation, and industrial processes. Its inline disc design ensures smooth flow and prevents backflow, while its PVC body provides durability and resistance to corrosion. The valve's Viton seal ensures a tight shut-off, even at high temperatures. Suitable for use in horizontal or vertical installations, this valve is ideal for applications where a low-cost, low-maintenance check valve is required. Its compact size and lightweight design make it easy to install and maintain, reducing downtime and increasing overall system efficiency.
Top product features:
- It has a single flow design that allows for unidirectional flow.
- It has an inline disc mechanism that prevents backflow.
- It is made with Viton seals that can operate at temperatures up to 140 degrees Fahrenheit.
Top product applications:
- Potable water distribution systems
- Steam-free condensate return lines
- Water treatment plants
PLAST-O-MATIC CKM075V-PV is a 3/4 in inline disc check valve with FNPT x FNPT threaded female connections. It is configured for one-direction flow applications and reverse-flow control in piping systems handling compatible corrosive media. The PVC body, diaphragm check mechanism, and Viton/FKM sealing components support use with media compatible with PVC and Viton/FKM components in backflow control applications.
Key Features:
- 3/4 in nominal valve size with 3/4 in FNPT x FNPT connections
- Inline disc body design with single-flow configuration
- PVC body construction
- Diaphragm check mechanism
- Seal material: Viton
- seat material: Viton
- Cracking pressure: 1.000 to 1.500 psi
- Flow rating: 7 gpm
- Maximum operating pressure: 150 psi
- maximum back pressure: 100 psi
- Maximum water pressure: 150 psi at 77 degrees F
- Operating temperature range: 32 degrees F to 140 degrees F
- Mounting orientation: horizontal or vertical
- mounting position: any
- Overall length: 4.13 in
- overall height: 4-3/32 in
- Silent check feature: included
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.30
- Package Height: 2.90
- Package Weight: 0.55
