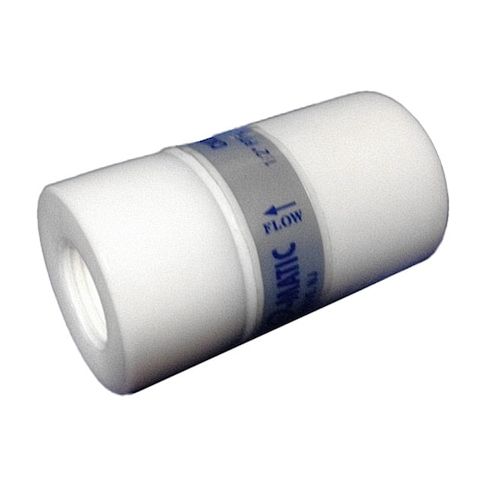

1/4" FNPT Polypropylene Disc Check Valve MPN:CKD025V-PP
The Plast-O-Matic 1/4in FNPT Polypropylene Disc Check Valve is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, this inline disc check valve ensures one-way flow, preventing backflow and contamination. Constructed from durable polypropylene, it can withstand temperatures from 32°F to 180°F and pressures up to 100 psi. Ideal for water supply systems, irrigation, and industrial processes, this valve provides a maximum flow rate of 2 gpm. Its compact size and lightweight design make it easy to install and maintain, making it a valuable addition to any plumbing or industrial system.
Top product features:
- Flow design is single
- Body design is inline disc
- Seal material is Viton
Top product applications:
- Water treatment systems
- Industrial process control systems
- Chemical processing plants
PLAST-O-MATIC CKD025V-PP is a 1/4 in. inline disc check valve with a polypropylene body, female NPT threaded connections, and Viton/FKM sealing components. This valve is for one-way flow applications in systems using liquids compatible with polypropylene and Viton/FKM wetted materials. It features a diaphragm check mechanism, a 0.5 psi cracking pressure, and a 2 gpm flow rating.
Key Features:
- Valve type: Inline disc check valve
- Body material: Polypropylene
- Connection size: 1/4 in. on both ends
- Connection type: Female NPT threaded
- Check mechanism: Diaphragm
- Seal material: Viton/FKM
- Flow capacity: 2 gpm
- Cv: 0.5
- Cracking pressure: 0.5 psi
- Pressure ratings: 100 psi maximum water pressure at 77 degrees F
- 125 psi maximum operating pressure
- 140 psi maximum pressure
- Temperature range: 32 to 180 degrees F
- Mounting orientation: Horizontal or vertical
- Silent operation: Yes
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 3.20
- Package Height: 2.50
- Package Weight: 0.15
