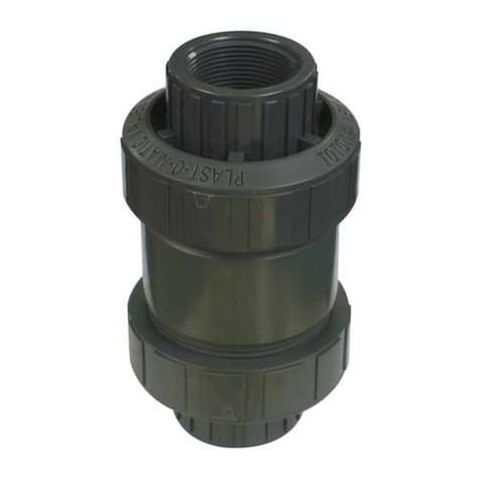

Check Valve, CKS Series, 2 in, FNPT x Socket, Inline Disc, PVC Body, Viton Seal MPN:CKS200VT-NC-PV

• PLAST-O-MATIC CKS200VT-NC-PV is a 2 in inline check valve for one-way flow applications. This inline disc valve features a PVC body, is listed for corrosive media applications, and uses a poppet check mechanism with Viton/FKM sealing components. It can be mounted horizontally or vertically and operates at pressures up to 100 psi, with a cracking pressure of 1.000 to 1.500 psi.

  Key Features:

  • Valve type: Check valve with inline disc body design for one-way flow applications
  • Size: 2 in nominal valve size with 2 in pipe/tube size
  • Body material: PVC
  • Application/media: Corrosive media
  • Connection type: FNPT x Socket
  • side 1 female NPT, side 2 female socket
  • Flow capacity: 45 gpm
  • Cracking pressure: 1.000 to 1.500 psi
  • Pressure rating: 100 psi maximum operating pressure
  • 100 psi at 75 degrees F maximum water pressure
  • Temperature range: 32 degrees F to 140 degrees F
  • Seal and seat material: Viton/FKM
  • Check mechanism: Poppet
  • Spring material: PFA-encapsulated stainless steel
  • Mounting: Horizontal or vertical
  • Silent-check design: Yes
  • Overall length: 8.38 in
