Double Wall Sight, 8 In. Flange, PVC MPN:GYWX800V-PV
Double Wall Sight, 8 In. Flange, PVC

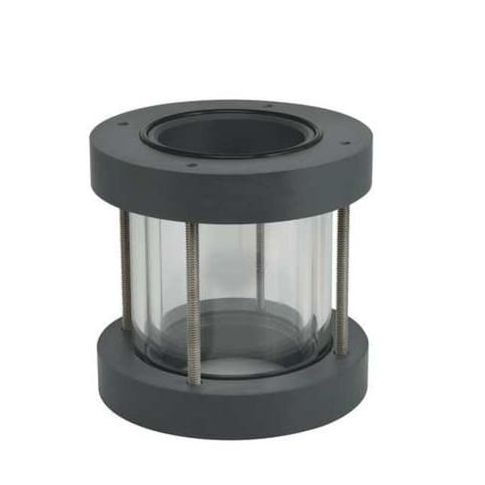

The Plast-O-Matic Double Wall Sight Flow Indicator is a reliable and versatile tool for monitoring fluid flow in a wide range of applications. Suitable for use in horizontal or vertical orientations, this PVC sight flow indicator features a 8-inch flange and can withstand operating pressures up to 50 psi. Its double wall design allows for easy visual inspection of fluid flow, while the acrylic window and Viton seal ensure durability and chemical resistance. Ideal for use in chemical processing, water treatment, and other industries where fluid flow monitoring is critical, this sight flow indicator provides accurate and reliable results.
Top product features:
- Double wall design for increased pressure resistance
- Wafer-style flange for easy connection and disconnection
- Acrylic window for clear flow indication
Top product applications:
- Pump suction and discharge lines to detect flow and prevent backflow
- Chemical processing plants to monitor flow and detect contamination
- Water treatment facilities to detect flow and prevent backflow in piping systems
Double Wall Sight Flow Indicator, Body Material PVC, Number of Walls Double, Connection Type Wafer-Style Flange, Connection Thread Size Not Applicable, Thread Gender Not Applicable, Thread Type Not Applicable, Pipe Size 8 in, Maximum Operating Pressure 50 psi, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 40 Degrees F, Mounting Orientation Horizontal, Vertical, Overall Length 6.3 in, Window Material Acrylic, Seal Material Viton, Flow Direction Any Direction
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.80
- Package Width: 12.20
- Package Height: 10.40
- Package Weight: 12.27
Product info last updated on January 25, 2026 6:15am UTC
Category: AC and Refrigeration Components
