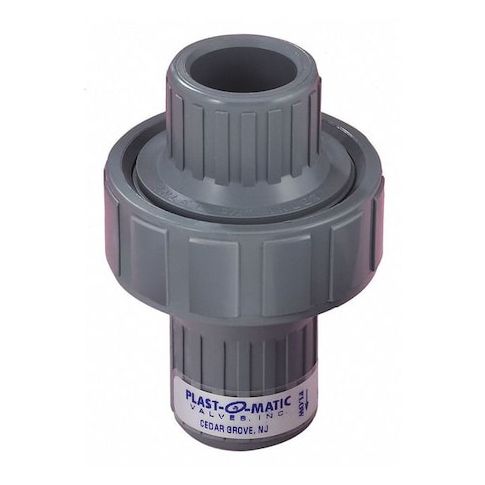

3/4" FNPT Polypropylene Disc Check Valve MPN:CKM075V-PP
3/4" FNPT Polypropylene Disc Check Valve
PLAST-O-MATIC CKM075V-PP is a 3/4 in. inline disc check valve for one-way flow and reverse-flow check applications in piping systems. It has a polypropylene body with Viton/FKM seal and seat materials and a service listing of corrosives. The valve features one female NPT end and one socket end for installation in horizontal or vertical orientations.
Key Features:
- Valve type: Check valve with inline disc mechanism
- Valve size: 3/4 in. nominal pipe size
- Body material: Polypropylene
- Connection type: FNPT x Socket
- side 1 female NPT, side 2 socket
- Cracking pressure: 1.000 to 1.500 psi
- Flow rating: 7 gpm
- Pressure ratings: Maximum inlet pressure 150 psi
- maximum back pressure 100 psi
- maximum water pressure 100 psi at 77 degrees F
- Operating temperature range: 32 degrees F to 180 degrees F
- Seal and seat material: Viton/FKM
- Mounting orientation: Horizontal or vertical
- mounting position: Any
- Overall dimensions: 4.13 in. length, 4-3/32 in. overall height, 2.8 in. width
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.30
- Package Height: 3.30
- Package Weight: 0.45
Product info last updated on February 7, 2026 4:17pm UTC
Category: Pipes, Valves and Fittings
