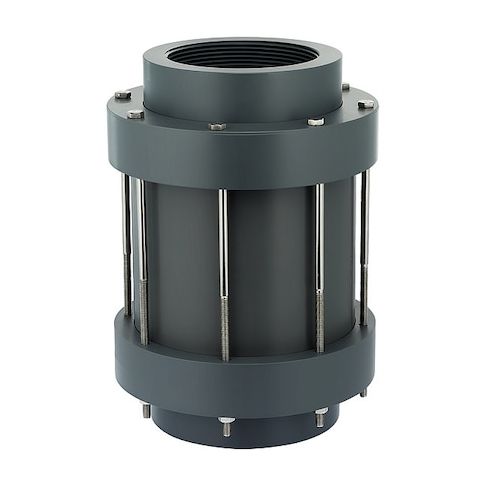

Check Valve, CKS Series, 3 in, FNPT x Socket, Inline Disc, PVC Body, Viton Seal MPN:CKS300VT-NC-PV

• PLAST-O-MATIC CKS300VT-NC-PV is a 3 in inline check valve configured for one-way flow applications with an automatic-closing check mechanism to help limit reverse flow. This single-flow, inline disc valve has a PVC body and is specified for compatible corrosive media. It features a poppet-style check mechanism with a 1.000 to 1.500 psi cracking pressure and a rated flow of 100 gpm.

  Key Features:

  • Body material: PVC construction.
  • Valve design: Inline disc body style with single flow design.
  • Check mechanism: Poppet type check mechanism.
  • Media compatibility: For compatible corrosive media.
  • Connection type: FNPT x Socket
  • side 1 is 3 in female NPT and side 2 is female socket.
  • Pressure rating: 100 psi maximum operating pressure
  • 100 psi at 75 degrees F maximum water pressure.
  • Temperature range: 32 degrees F minimum to 140 degrees F maximum.
  • Seal and seat material: Viton/FKM.
  • Spring material: PFA-encapsulated stainless steel.
  • Mounting: Horizontal or vertical
  • mounting position: any.
  • Dimensions: 9.88 in overall length, 9 29/32 in overall height, 5 1/2 in width.
