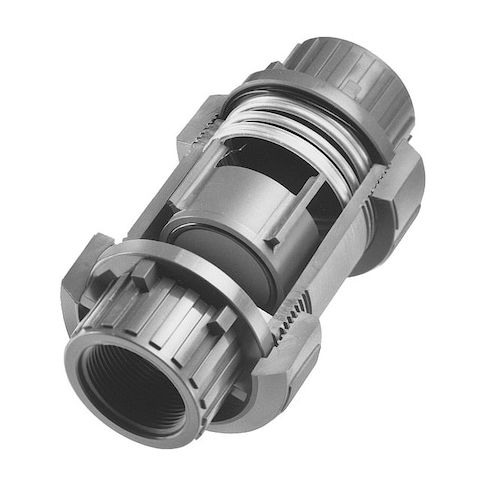

3" FNPT Polypropylene Disc Check Valve MPN:CKS300VT-NC-PP

PLAST-O-MATIC CKS300VT-NC-PP is a 3 in. inline disc check valve for one-way flow control with compatible corrosive media. It features a polypropylene body, a poppet-style check mechanism, Viton/FKM seal and seat materials, and a PFA-encapsulated stainless steel spring. Cracking pressure: 1.000 to 1.500 psi. Mounting orientation: horizontal or vertical.

Key Features:

• 3 in. nominal valve size with FNPT x socket end connections
• Side 1 female NPT connection and side 2 socket connection
• Polypropylene body for use with compatible corrosive media
• Inline disc body design with single-flow configuration
• Poppet check mechanism with FKM check mechanism material
• Viton seal and seat materials
• Rated flow: 100 gpm
• Maximum operating pressure: 100 psi
• Maximum water pressure: 100 psi at 75 degrees F
• Operating temperature range: 32 to 180 degrees F
• Manufacturer-designated silent check design
• Overall length: 9.88 in.
• Overall height: 9 29/32 in.
