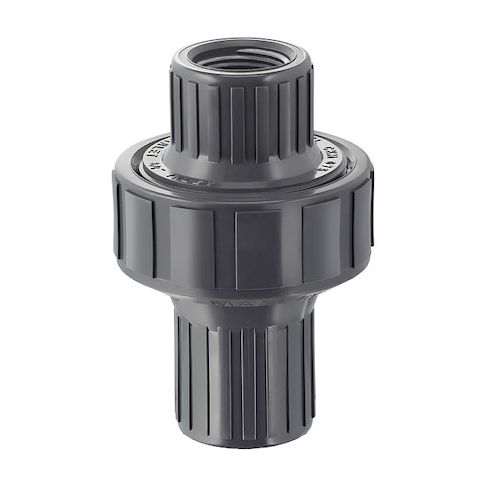

Check Valve, CKM Series, 1 in, FNPT x Socket, Inline Disc, PVC Body MPN:CKM100V-PV
The Plast-O-Matic 1in FNPT PVC Disc Check Valve is a reliable and efficient solution for various applications. Suitable for use in water supply systems, this valve prevents backflow and ensures a one-way flow of fluids. Its PVC construction and Viton seals make it resistant to corrosion and chemicals, ensuring a long lifespan. The valve's compact design and horizontal/vertical mounting options make it easy to install in tight spaces. Ideal for use in residential, commercial, and industrial settings, this check valve is perfect for applications such as water treatment, irrigation, and plumbing systems where backflow prevention is crucial.
Top product features:
- 1in FNPT PVC Disc Check Valve has a single flow design with an inline disc mechanism.
- The valve is designed for horizontal and vertical mounting orientations.
- The valve features a Viton seal material that can operate at temperatures up to 140 Degrees F.
Top product applications:
- Water treatment systems
- Steam trap applications
- Industrial process control
PLAST-O-MATIC CKM100V-PV is a 1 in inline check valve with one-way flow configuration for compatible corrosive media applications. It features a PVC body, a diaphragm check mechanism, a single-flow design, and supplier-listed operation style: silent. This valve has a 12 gpm flow rating, a 1.000 to 1.500 psi cracking pressure, and mounting orientation: horizontal or vertical.
Key Features:
- 1 in nominal valve size with FNPT x Socket end connections
- side 1 female NPT and side 2 female socket.
- PVC body construction for compatible corrosive media service.
- Diaphragm check mechanism with inline disc body design and inline valve body style.
- Seal and seat materials: Viton/FKM.
- Flow rating: 12 gpm.
- Cracking pressure: 1.000 to 1.500 psi.
- Operating temperature range: 32 Degrees F to 140 Degrees F.
- Maximum water pressure: 100 psi at 75 Degrees F
- maximum inlet pressure: 150 psi
- maximum back pressure: 100 psi.
- Mounting orientation: horizontal or vertical.
- Overall length: 4.72 in.
- Standards: Lead Free.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 3.30
- Package Height: 3.50
- Package Weight: 0.70
