Shut-Off Valve, Pneumatic, 3/4 In., FNPT MPN:BSDA075T-NC-PV
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4022277

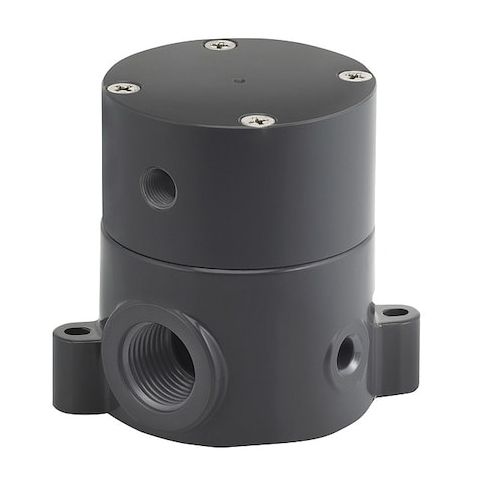

Shut-Off Valve, Pneumatic, 3/4 In., FNPT
The Plast-O-Matic Shut-Off Valve is a reliable and efficient solution for controlling the flow of corrosive chemicals, water, and other media in various industrial applications. This pneumatic valve features a PTFE diaphragm and PVC body, ensuring long-lasting performance in harsh environments. With a maximum operating pressure of 100 psi and a maximum temperature of 140°F, this valve is suitable for a wide range of applications, including chemical processing, water treatment, and HVAC systems. Its 3-way design and normally closed operation make it an ideal choice for applications where precise control is required.
Top product features:
- Pneumatically actuated diaphragm valve for remote operation
- Normally closed (NC) valve deactivated state for safety
- PTFE diaphragm and seal materials for resistance to corrosive chemicals and water
Top product applications:
- Chemical Processing
- Water Treatment Plants
- Industrial Cooling Systems
Pneumatically Actuated Diaphragm Valve, Coefficient of Volume (Cv) 5.8, Nominal Valve Size 3/4 in, Actuator Air Port Connection 1/8 in NPT, Connection Type - Side 1 NPT, Connection Type - Side 2 NPT, For Media Corrosive Chemicals, Water, Diaphragm Material PTFE, Operating Temperature - Maximum 140 Degrees F, Maximum Pressure - Operating 100 psi, Valve Deactivated State Normally Closed (NC), Body Material PVC, Diaphragm Valve Type 3-Way, Seal Material PTFE, Overall Length 3 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 3.40
- Package Height: 3.50
- Package Weight: 1.30
Product info last updated on February 4, 2026 10:34pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
