Shut-Off Valve, Pneumatic, 1/4 In., FNPT MPN:BSDA025T-NC-PP
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3998942

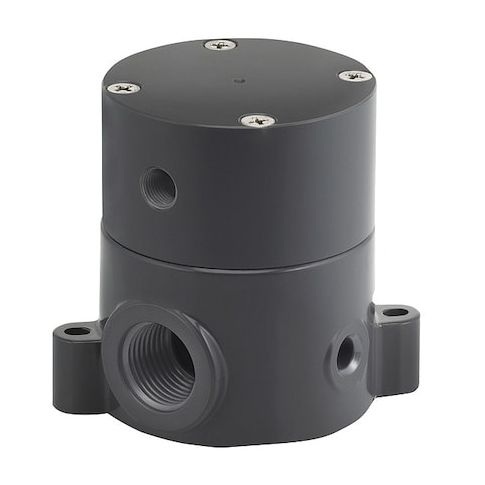

Shut-Off Valve, Pneumatic, 1/4 In., FNPT
The Plast-O-Matic Pneumatic Shut-Off Valve is a reliable and versatile solution for controlling the flow of corrosive chemicals and water in various industrial applications. This 1/4 inch valve features a pneumatically actuated diaphragm design, allowing for precise control and minimizing the risk of contamination. With a maximum operating temperature of 180 degrees F and pressure of 100 psi, this valve is suitable for a wide range of applications, including chemical processing, water treatment, and pharmaceutical manufacturing. Its normally closed design and PTFE diaphragm ensure safe and reliable operation, making it an ideal choice for industries where safety and efficiency are paramount.
Top product features:
- Pneumatically Actuated Diaphragm Valve
- Normally Closed (NC) Deactivated State
- Diaphragm Material PTFE for Chemical Resistance
Top product applications:
- Corrosive chemical processing
- Water treatment systems
- Industrial chemical applications
Pneumatically Actuated Diaphragm Valve, Coefficient of Volume (Cv) 1.1, Nominal Valve Size 1/4 in, Actuator Air Port Connection 1/8 in NPT, Connection Type - Side 1 NPT, Connection Type - Side 2 NPT, For Media Corrosive Chemicals, Water, Diaphragm Material PTFE, Operating Temperature - Maximum 180 Degrees F, Maximum Pressure - Operating 100 psi, Valve Deactivated State Normally Closed (NC), Body Material Polypropylene, Diaphragm Valve Type 3-Way, Seal Material PTFE, Overall Length 2 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 3.50
- Package Height: 2.40
- Package Weight: 0.38
Product info last updated on February 3, 2026 8:55am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
