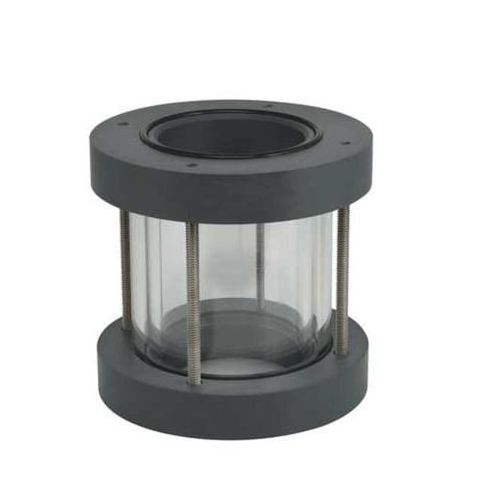

Single Wall Sight, 3 In. FNPT, PVC MPN:GX300V-PV
Single Wall Sight, 3 In. FNPT, PVC
The Plast-O-Matic Single Wall Sight is a versatile and reliable flow indicator designed for a wide range of applications. Suitable for horizontal or vertical mounting, this sight features a 3-inch FNPT connection and a maximum operating pressure of 110 psi. Made from durable PVC, it can withstand temperatures between 40°F and 140°F. The acrylic window provides clear visibility of fluid flow, while the Viton seal ensures a tight seal. Ideal for use in chemical processing, water treatment, and other industries where fluid flow needs to be monitored, this sight flow indicator offers accurate and reliable performance.
Top product features:
- Single Wall Sight Flow Indicator allows the user to visually monitor flow direction.
- The product has a PVC body material that provides resistance to corrosion.
- The sight glass is made of acrylic, which provides a clear view of the fluid inside.
Top product applications:
- Drinking water treatment plants for monitoring flow rates in pipes
- Industrial processes for indicating fluid flow in pipelines
- Chemical processing plants for observing flow rates in pipes under pressure
Single Wall Sight Flow Indicator, Body Material PVC, Number of Walls Single, Connection Type Pipe Threads, Connection Thread Size 3 in, Thread Gender Female, Thread Type NPT, Pipe Size 3 in, Maximum Operating Pressure 110 psi, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 40 Degrees F, Mounting Orientation Horizontal, Vertical, Overall Length 8.4 in, Window Material Acrylic, Seal Material Viton, Flow Direction Any Direction, Standards Not Applicable
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 9 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.70
- Package Width: 10.40
- Package Height: 7.00
- Package Weight: 4.60
Product info last updated on February 3, 2026 10:36am UTC
Category: AC and Refrigeration Components
