Vacuum Generator, 22 mm Overall H MPN:02.07.770
Vacuum Generator, 22 mm Overall H

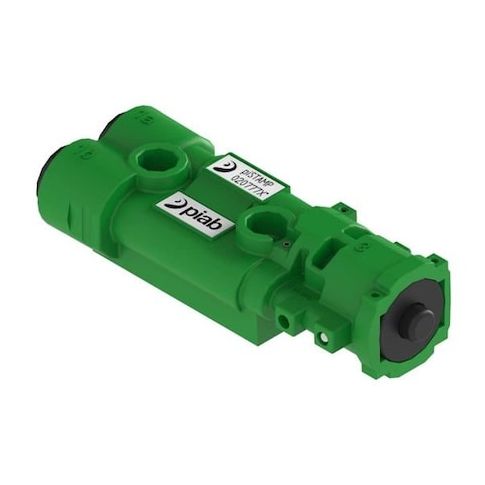

The Piab Vacuum Generator is a compact and efficient solution for various industrial applications. Its ability to generate high vacuum pressure while consuming minimal airflow makes it ideal for use in delicate or sensitive environments. With a maximum flow rate of 1.48 scfm and a maximum vacuum pressure of 23.92 in Hg, this generator is suitable for applications such as material handling, assembly, and surface cleaning. Its compact design and ease of integration make it a versatile option for manufacturers and engineers looking to optimize their processes and improve productivity.
Top product features:
- Generates a vacuum pressure of up to 23.92 in Hg
- Operates at temperatures between 32 Degrees F and 122 Degrees F
- Has a maximum air consumption of 1.48 scfm
Top product applications:
- Automotive Manufacturing: The Vacuum Generator is used to create a vacuum seal for welding and assembly processes in the automotive industry.
- Medical Device Manufacturing: The device is used to create a vacuum seal for medical device packaging and assembly processes.
- Food Processing: The Vacuum Generator is used to create a vacuum seal for packaging and processing food products.
Item Vacuum Generator, Air Consumption 1.36 scfm, Cartridge Type (2) COAX MICRO Ti05, Maximum Flow Rate 1.48 scfm, Maximum Operating Temperature 122 Degrees F, Maximum Supply Pressure 101.5 psi, Maximum Vacuum Pressure 23.92 in Hg, Minimum Flow Rate 0 scfm, Minimum Operating Temperature 32 Degrees F, Minimum Supply Pressure 43.5 psi, Number of Stages 2, Overall Depth 32.4 mm, Overall Height 22 mm, Overall Width 80.2 mm, Pressure Port Gender Female, Pressure Port Size 8 mm
Additional Information
- Country of Origin: SG
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.30
