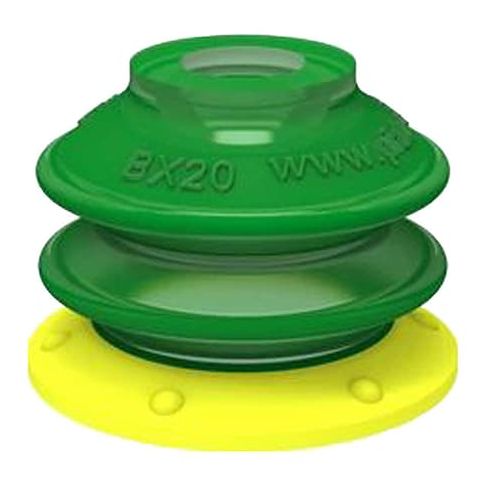

Vacuum Cup, PUR, Yellow, 0.83 in dia., PK5 MPN:BX20P.4K.02AB
Vacuum Cup, PUR, Yellow, 0.83 in dia., PK5
The Piab BX20P Vacuum Cup is a high-performance, multi-bellows pad designed for a variety of applications, including material handling, packaging, and assembly. With a maximum operating temperature of 122°F and a minimum operating temperature of 50°F, this cup is suitable for use in a range of environments. The durable polyurethane construction and 30A durometer rating ensure reliable performance and long lifespan. The compact size and lightweight design make it easy to integrate into your system. Use the BX20P to improve efficiency and accuracy in applications such as picking, placing, and conveying.
Top product features:
- Multi-Bellows design allows for flexibility and adaptability to various surfaces
- Operating temperature range of 50-122°F accommodates a variety of environments
- Pad material is Polyurethane, providing durability and resistance to wear
Top product applications:
- Vacuum Cup, PUR, Yellow, 0.83 in dia., PK5 from Piab is used in a robotic part handling system to pick up small metal parts.
- A Vacuum Cup, PUR, Yellow, 0.83 in dia., PK5 from Piab is used in a machine that assembles and tests electronic components.
- Vacuum Cup, PUR, Yellow, 0.83 in dia., PK5 from Piab is used in a medical device that uses a vacuum to pick up and manipulate small biological samples.
Item Vacuum Pad Assembly, Durometer 30A, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature 50 Degrees F, Number of Pieces 5, Outside Diameter 27/32 in, Overall Height 1 1/16 in, Pad Color Yellow, Pad Diameter 21.08 mm, Pad Height 27.2 mm, Pad Material Polyurethane, Pad Type Multi-Bellows, Port Size 1/8 in, Port Type G, Series BX20P, Stroke 0.3 in, Weight 0.003 lb, Package Quantity 5
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.10
Product info last updated on January 31, 2026 1:02am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
