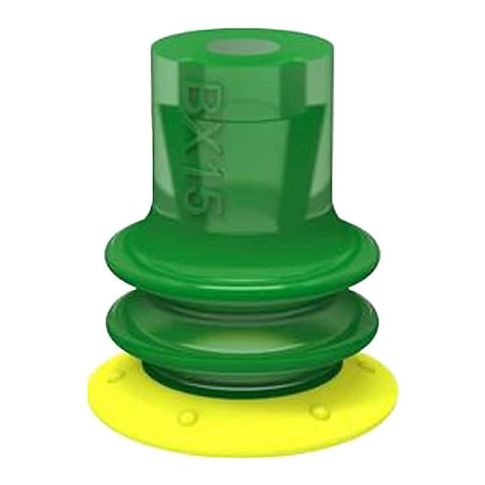

Vacuum Cup, PUR, Yellow, 0.63 in dia., PK10 MPN:BX15P.4K.01AC
Vacuum Cup, PUR, Yellow, 0.63 in dia., PK10
The Piab Vacuum Cup, PUR, Yellow, 0.63 in dia., PK10 is a versatile and reliable component for a variety of applications. Suitable for use in temperatures ranging from 50°F to 122°F, this multi-bellows pad assembly provides consistent performance and durability. Its compact size and lightweight design make it ideal for precision handling and assembly tasks, while its yellow color makes it easy to identify. With a maximum stroke of 0.22 in, this vacuum cup is perfect for applications such as pick-and-place, surface mounting, and precision placement, offering improved accuracy and efficiency in manufacturing and production processes.
Top product features:
- Multi-Bellows design for flexible sealing
- Polyurethane material for durability and resistance to temperature extremes
- Operating temperature range of 50-122 Degrees F for versatility in various environments
Top product applications:
- Vacuum Cup, PUR, Yellow, 0.63 in dia., PK10 can be used in a Robotic End-of-Arm Tooling (EOAT) application to provide vacuum gripping and lifting of small parts.
- Vacuum Cup, PUR, Yellow, 0.63 in dia., PK10 is suitable for use in a Material Handling application, such as a vacuum conveyor system, to move small items along a production line.
- Vacuum Cup, PUR, Yellow, 0.63 in dia., PK10 can be used in a Medical Device application, such as a robotic surgical system, to provide precise and gentle handling of small medical instruments or devices.
Item Vacuum Pad Assembly, Durometer 30A, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature 50 Degrees F, Number of Pieces 10, Outside Diameter 5/8 in, Overall Height 1 1/16 in, Pad Color Yellow, Pad Diameter 16 mm, Pad Height 27 mm, Pad Material Polyurethane, Pad Type Multi-Bellows, Port Size M5, Port Type Metric, Series BX15P, Stroke 0.22 in, Weight 0.003 lb, Package Quantity 10
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 8.00
- Package Width: 6.00
- Package Height: 4.00
- Package Weight: 0.10
Product info last updated on January 19, 2026 10:14pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
