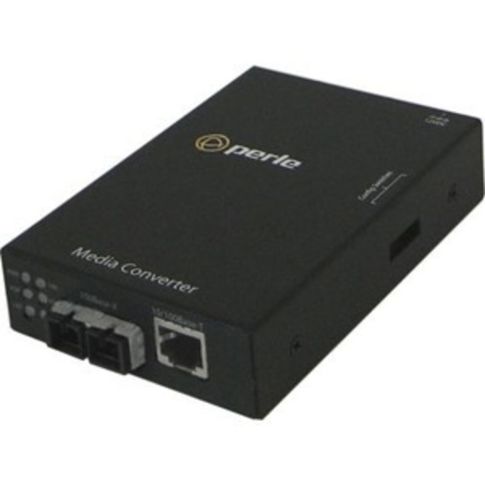

Perle S-110-S1SC20U - Fiber media converter - 100Mb LAN - 10Base-T, 100Base-TX, 100Base-BX - RJ-45/SC singl - 05050474 MPN:05050474
SKU
312-281101
Perle S-110-S1SC20U - Fiber media converter - 100Mb LAN - 10Base-T, 100Base-TX, 100Base-BX - RJ-45/SC singl - 05050474 MPN:05050474
The Perle S-110-S1SC20U fiber media converter is a reliable and efficient solution for extending Ethernet networks over fiber optic cables. With its auto-MDIX feature, the device automatically detects and configures the connection, ensuring seamless data transfer. Its pause signaling and error recovery capabilities ensure uninterrupted network operation. Suitable for a variety of applications, including industrial automation, security, and surveillance, this media converter is ideal for connecting buildings, campuses, or remote locations. Its compact design and durable construction make it easy to install and maintain, providing a cost-effective and hassle-free way to expand your network.
Top product features:
- Auto-MDIX detects the signaling on the 10/100BASE-T interface to determine the type of cable connected and automatically configures the connection.
- Integrated pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed.
- The Perle media converter can generate and respond to pause messages.
Top product applications:
- Fiber to copper conversion
- Ethernet extension over fiber optic cable
- Industrial Ethernet applications requiring high-speed data transmission
Auto-MDIX. Auto-MDIX (automatic medium-dependant interface crossover) detects the signaling on the 10/100BASE-T interface to determine the type of cable connected (straight-through or crossover) and automatically configures the connection. Pause (IEEE 802.3xy). Integrated pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. The Perle media converter can generate and respond to pause messages. Status LED. The Perle 10/100 Ethernet media converters have six single color status LEDs located on the front panel of the unit. Error recovery. In certain configurations, and under specific conditions where the media converter brings down a link to convey status, there is potential for a deadlock. Recovery is achieved by momentarily restoring the link to see if the original failure has been resolved.
Features
- Brand Name: Perle
- Manufacturer: PERLE SYSTEMS
- Model: S-110-S1SC20U
- Quantity: 1
- Total Quantity: 1 Network Transceivers
Additional Information
- Country of Origin: CA
- UNSPSC Code: 43201553
- UNSPSC Commodity: Transceivers and media converters
- Green: No
- Recycled Content: FALSE
- Hazardous: No
- Prop 65: No
- MSDS URL: nan
- Package Length: 10.10
- Package Width: 6.50
- Package Height: 2.50
- Package Weight: 1.10
Product info last updated on January 6, 2025 12:06am UTC
Category: Networking and Cables
