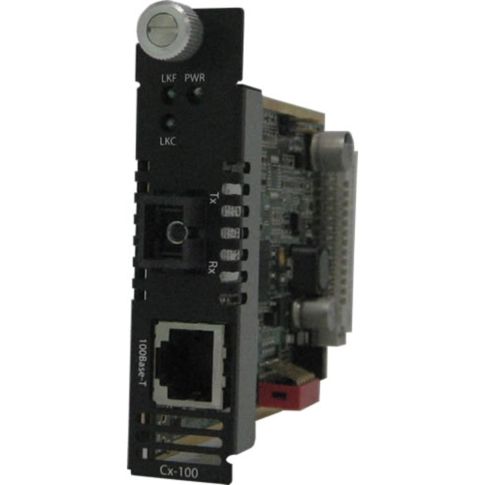

Perle CM-100-S1SC20D - Fiber media converter - 100Mb LAN - 100Base-TX, 100Base-BX - RJ-45/SC single-mode - up to 12.4 miles - 1550 (TX)/1310 (RX) nm MPN:05052280
SKU
312-145831
Perle CM-100-S1SC20D - Fiber media converter - 100Mb LAN - 100Base-TX, 100Base-BX - RJ-45/SC single-mode - up to 12.4 miles - 1550 (TX)/1310 (RX) nm MPN:05052280
The Perle CM-100-S1SC20D fiber media converter is a reliable and efficient solution for extending 100Mb LAN connections over long distances. This compact device enables link pass-through, pause signaling, and Far-End Fault detection, ensuring seamless communication and minimizing data loss. Ideal for use in various applications, including industrial automation, transportation, and data center connectivity, the CM-100-S1SC20D offers up to 12.4 miles of transmission distance. Its easy management and automatic backup features make it a hassle-free addition to any network infrastructure, providing a transparent and high-speed connection for end devices.
Top product features:
- Link pass-through allows the media converter to appear transparent to end devices, minimizing data loss when a fault occurs.
- Pause signaling temporarily suspends data transmission between devices when one becomes overwhelmed, preventing data loss.
- Far-End Fault detection transmits an indication over the fiber connection when a receive failure is detected, allowing for prompt fault detection and resolution.
Top product applications:
- Fiber to the Desk (FTTD) deployments
- Long-haul fiber connections
- Industrial Ethernet applications
Link pass-through. With link pass-through the state of the 100Base-TX receiver is passed to the 100Base-FX transmitter to make the media converter appear transparent to the end devices that are connected. Using link pass-through with Far-End Fault minimizes data loss when a fault occurs. Pause (IEEE 802.3xy). Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. The Fast Ethernet media converter supports pause negotiation on the 100Base-TX copper connection. Backup and restore. It provides fast and easy module replacement. Management module will always save a copy of the media converter configuration and will restore this configuration automatically to the media module when it is detected in the slot. Far-End Fault (FEF). The media converter implements the 802.3 standard for Far-End Fault for the indication and detection of remote fault conditions on the 100Base-FX fiber connection. With Far-End Fault enabled the media converter transmits the Far-End Fault indication over the 100Base-FX fiber connection whenever a receive failure is detected on the 100Base-FX fiber connection.
Features
- Brand Name: Perle
- Manufacturer: PERLE SYSTEMS
- Model: CM-100-S1SC20D
- Quantity: 1
- Total Quantity: 1 Network Transceivers
Additional Information
- Country of Origin: CA
- UNSPSC Code: 43201553
- UNSPSC Commodity: Transceivers and media converters
- Green: No
- Recycled Content: FALSE
- Hazardous: No
- Prop 65: No
- MSDS URL: nan
- Package Length: 8.50
- Package Width: 6.00
- Package Height: 1.50
- Package Weight: 0.73
Product info last updated on January 6, 2025 12:05am UTC
Category: Networking and Cables
